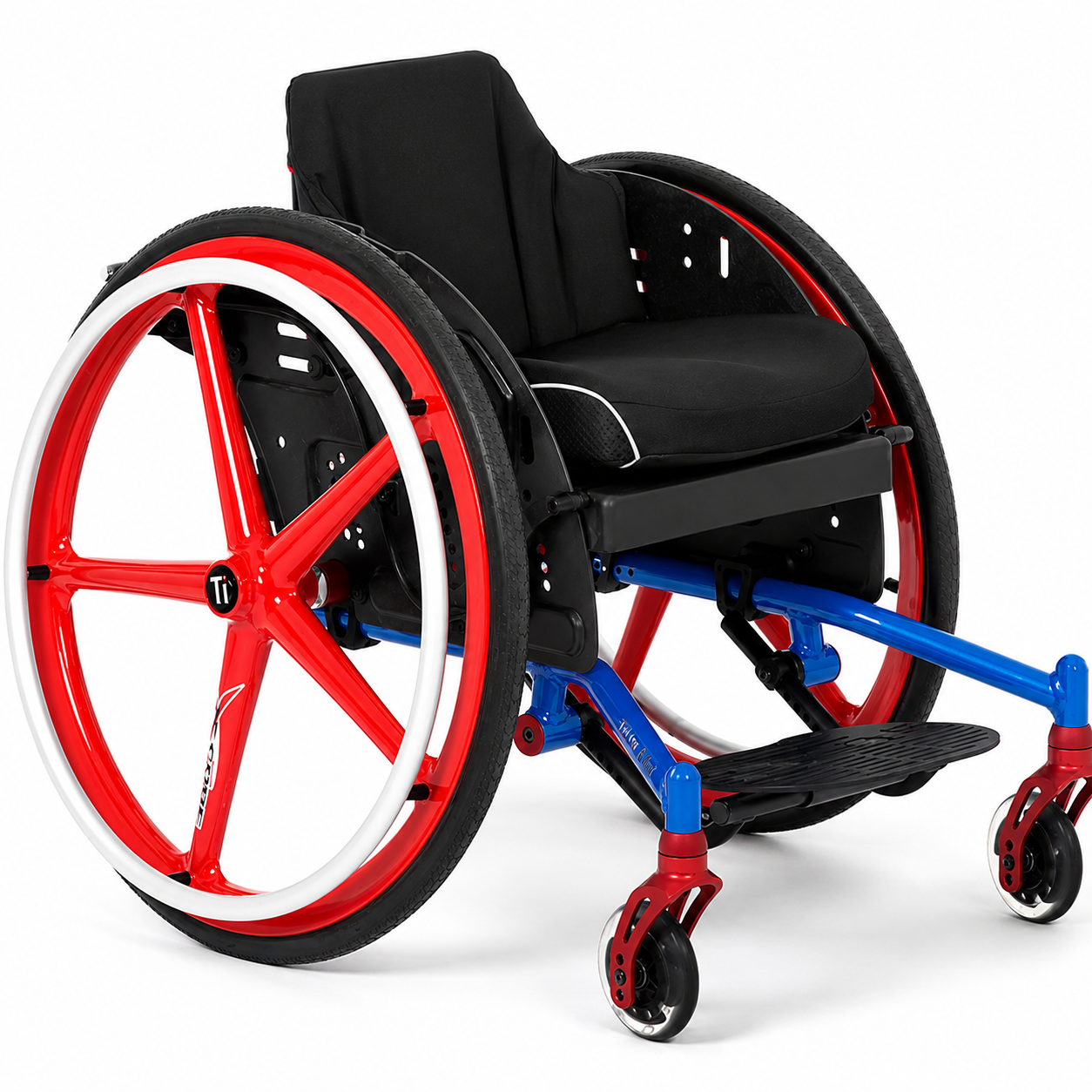

TiLite Pilot Growable Youth Wheelchair

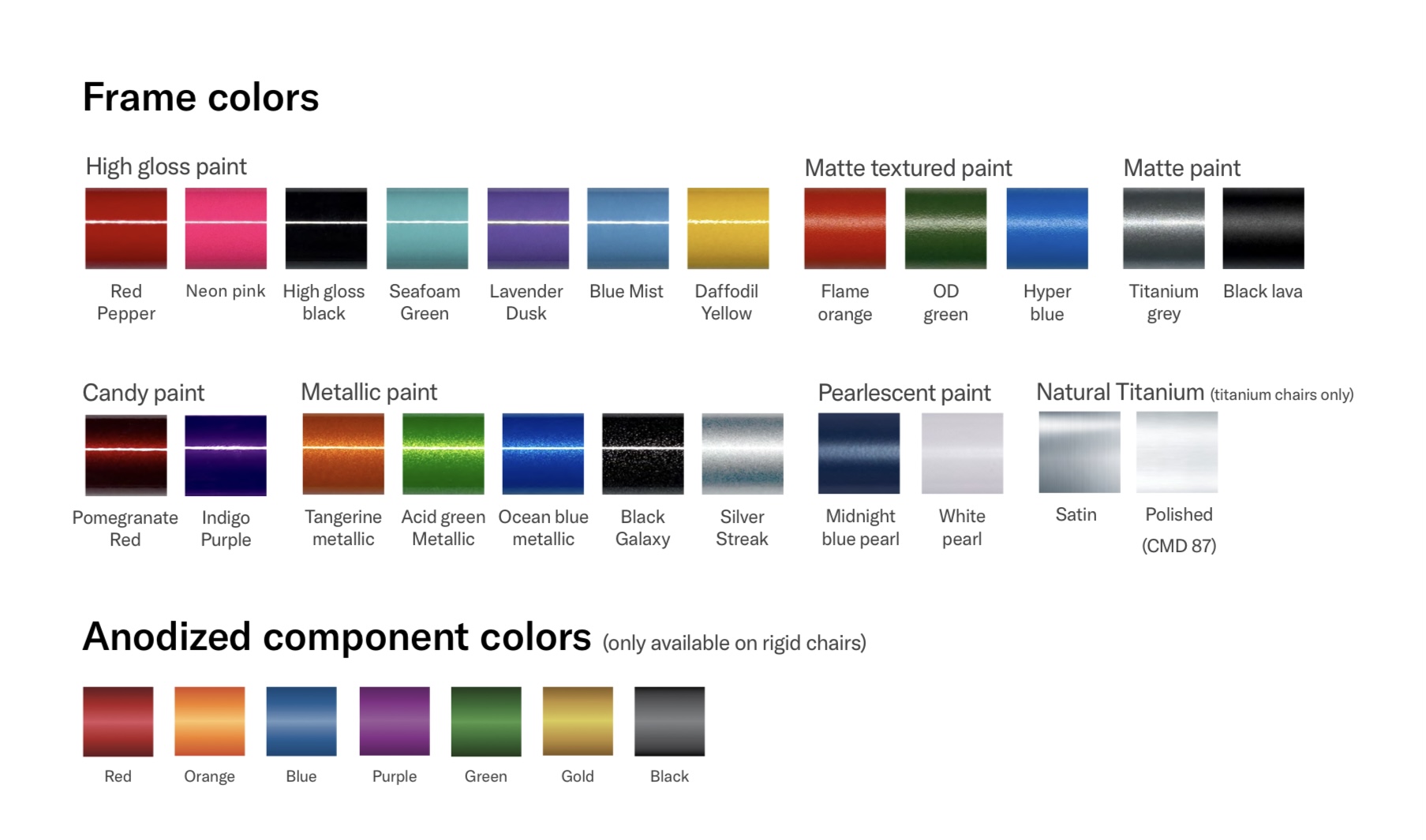

Frame Style:

TPFS1 – TiLite Pilot INCLUDING Growth Kit (Full Adjustability. Seat Width (A) grows 2” and Seat Depth (B) grows 3”.) 120 Pound Weight Limit. Price includes one-time growth kit and Transit Tie-Down option. Additional growth kits sold separately.)

TiLite Pilot Transit Tie-Down Option

When the “Transit Tie-Down Option” is selected on the Permobil TiLite Pilot order form, the product ships
with four factory-installed transit tie-down brackets for securing the wheelchair within the vehicle and the
reinforced frame. The four tie-down brackets are used to secure the wheelchair within the vehicle using a
four-point, strap-type wheelchair tie-down system. Permobil recommends that the occupant should be
secured using a wheelchair-mounted pelvic belt and a vehicle mounted shoulder belt.

Permobil has crash tested its TiLite Pilot with Transit Tie-Down Option in accordance with ANSI/RESNA
WC-4:2017, Section 19 – Wheelchairs Used as Seats in Motor Vehicles. The Permobil TiLite Pilot with
Transit Tie-Down Option has been found to meet or exceed the performance requirements of this standard.

In this test, a wheelchair is loaded with a suitable crash test dummy, accelerated to 30 mph and brought to
a controlled stop, simulating an impact generating 20g on the crash test dummy. The chair tested used a
14″ wide by 15″ deep seat, and it was loaded with a test dummy that certifies the chair as crashworthy up
to 95 lbs occupancy. The Permobil TiLite Pilot with Transit Tie-Down Option was designed to be secured
facing forward when used as a seat in a motor vehicle.

Permobil makes no claims that any other components or configurations have been tested beyond the
above-described configuration. Please refer to the Permobil TiLite Pilot Owner’s Manual available at
www.Permobil.com for full information, including all warnings and restrictions, regarding the Permobil TiLite
Pilot Transit Tie-Down Option. Permobil does not claim that its Transit Tie-Down Option will prevent injury
or death in the event of a motor vehicle accident.

Annex E of ANSI/RESNA WC-4:2017, Section 19 provides a method of testing a wheelchair for its ability to
accommodate vehicle-anchored pelvic and shoulder belts. The Permobil TiLite Pilot had an overall score of
11, for a rating of “Excellent”, when tested in accordance with this standard.

The ease of access to, and maneuverability in, motor vehicles can be significantly affected by wheelchair
size and turning radius. Smaller wheelchairs and/or wheelchairs with a shorter turning radius will generally
provide greater ease of vehicle access and maneuverability to a forward-facing position.

1 Crash testing is a simulation of a frontal impact only. It does not simulate any other type of impact. Furthermore, Permobil wheelchairs are highly customized and can be ordered in millions of combinations and it is impossible to test every conceivable combination. Therefore, Permobil recommends that wheelchair users transfer to the vehicle seat when being transported in a vehicle. The vehicle seat offers the greatest degree of safety because it is secured to the chassis of the vehicle and is designed with the primary purposes of protecting the occupant in a crash. By contrast, the primary purpose of any wheelchair is to maximize mobility, which in turn requires that the product be as light as possible. As of this date, the U.S. Department of Transportation has not approved any tie-down system for transportation of a user while in a wheelchair in a moving vehicle of any type.

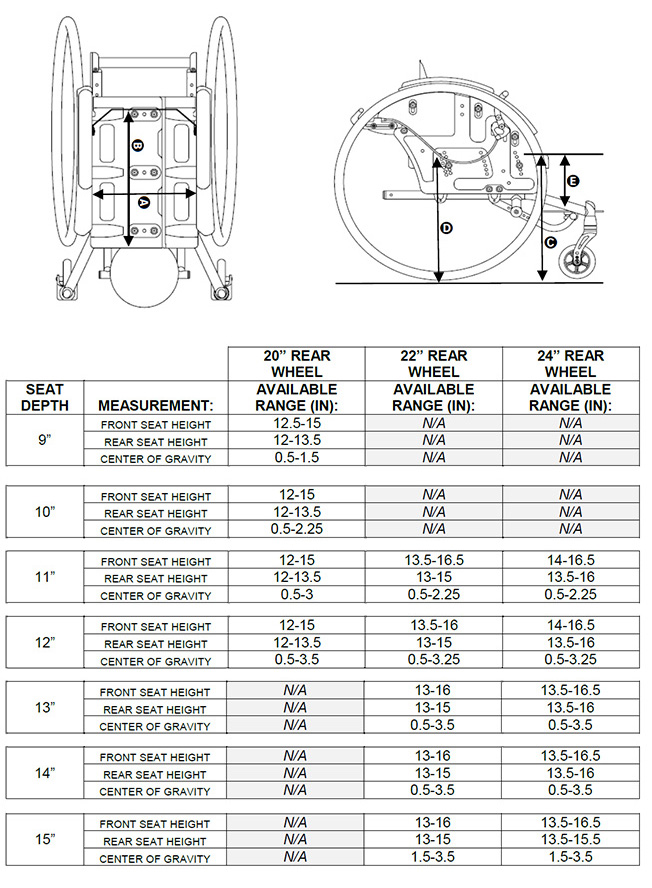

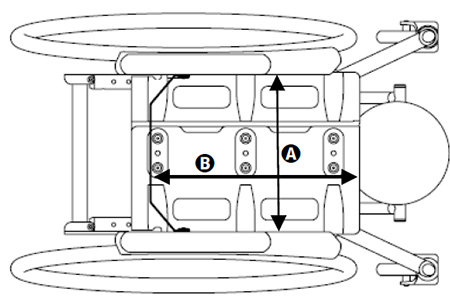

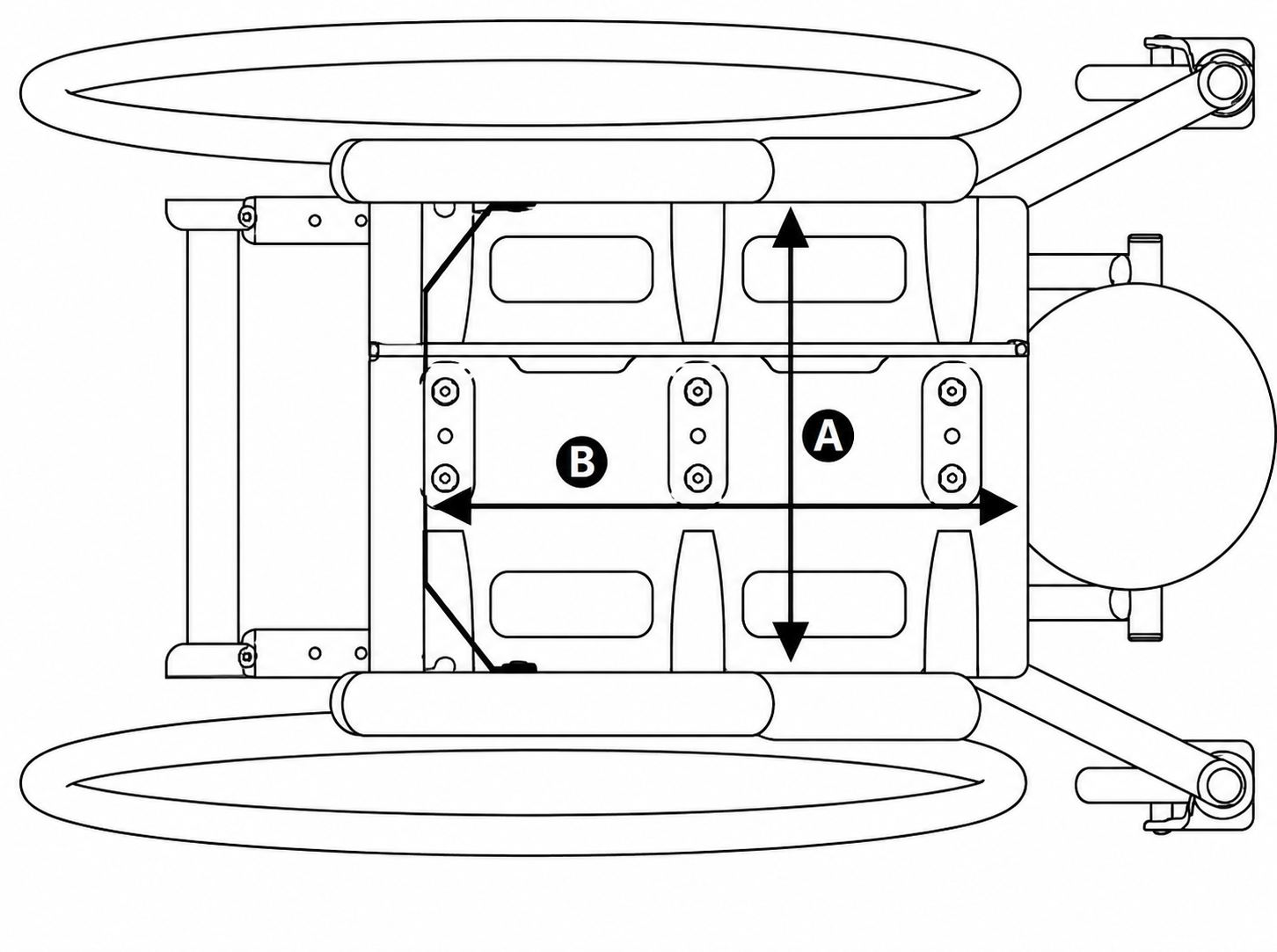

Seat Width: (A)
Measure inside width from side panel to side panel. Seat width grows 2” if selected width is between 8” and 12”. The 13” width will grow a maximum of 1”, and the 14” width will not grow any wider. Refer to chart for seat depth availability.

Seat Depth Range:
The seat depth can be grown within the selected range.

Seat Depth: (B)
Measure from front of seat pan to front of back support cushion.

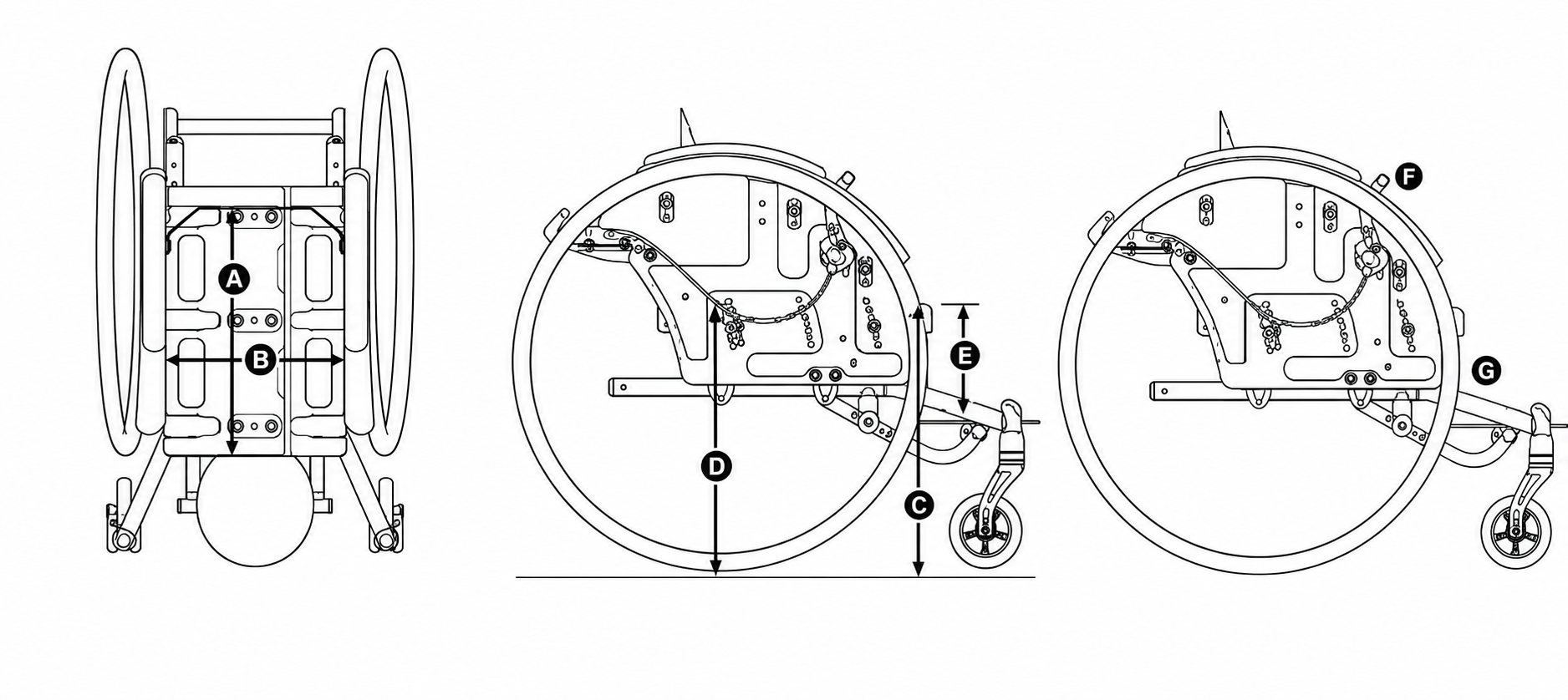

Front Seat Height: (C)
Measure from the floor to the top edge of the front of the seat pan. Adjustable in 0.5” increments.

Rear Seat Height: (D)
Measure from the floor to the top edge of the of the seat pan at the intersection of the front of the back support pad and the seat pan. Adjustable in 0.5” increments.

Seat to Footrest: (E)
Measure from the top of the footplate to the front of the seat pan. For an angle adjustable footrest, this
measurement must be at least 2” less than front seat height. For a Flip-Back Depth and Angle Adjustable footrest, this measurement must be at least 3” less than front seat height.

Head Support:
The Comfort head support is WC-20 certified on the Acta-Back and Acta-Embrace. The head support is WC-19 certified when
used with the TiLite backrest.

Seat Back Type:
Measure from top of back support to seat pan. Back support shell height is 9.5” with scapular cutouts.

Push Handles:
Height adjustable range is 33” – 40” as measured from the floor with 24” (540) wheels.

Wheel Positioning:

REAR WHEEL SPACING | measure from outside of side panel to inside of rear tire at top of wheel. not all rear wheel spacing is available with all accessories.

Rear Wheel Type:

TPRW9 New Spinergy Design Lab LX Wheels (If same color is selected, anodized hubs and rims match color anodized package above. Available with black spokes only.)
