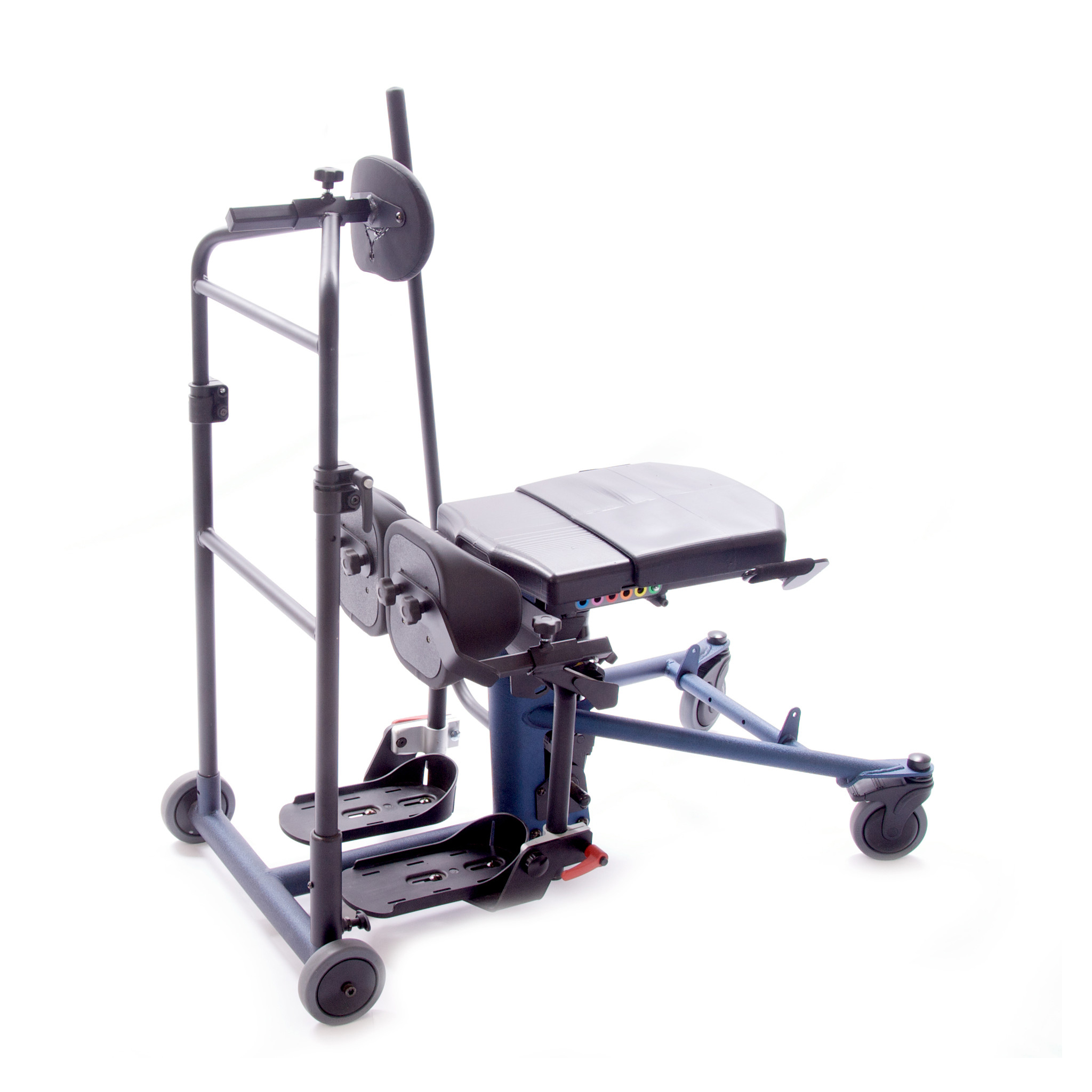

EasyStand Bantam – Medium

Stock# ES-B50001M

Retail: $2,522.00Cost: $2,017.60

    Price isn’t all that matters when you are considering buying your new EasyStand Bantam – Medium, excellent customer service is priceless!

    The Bantam line of standers are the only sit to stand standers that can combine the option of supine positioning to create infinite positioning possibilities from 90-90 sitting, fully vertical standing, full supine lying and anywhere in between. No other standers can provide the amount of positioning that is possible with the EasyStand Bantam. Fits users 4′-5’6” tall and up to 200 lbs. Seat Depth Range (from seat pivot) 15″-20″

    Seat to Foot Plate Range (from seat pivot) 7-18.5″

    Standard Features:

    • Two 5” Rear Locking Casters
    • Two 5” Front Wheels
    • Manual Hydraulic Actuator with Handle
    • Planar Seat
    • Height-Only Adjustable Foot Plates
    • Black Upholstery
    • Blue Frame Color

    Choose Your Options:

    In stock

    Retail: $2,522.00Cost: $2,017.60

    Ask a question about this productOne or more required fields are missing. Please check your selections above.

    Reviews

    There are no reviews yet.

    Your Review

    Specifications

    Approximate Height Range 48″-66″ 122-168cm
    Weight Limit 200lbs 91kg
    Seat Depth Range, Planar (from seat pivot to flat back surface) 15″-20″ 38-51cm
    Seat Depth Range, Contour (from seat pivot to flat back surface) 15″-20″ 38-51cm
    Seat (Planar) Height From Floor (transfer height) 22″ 56cm
    Seat (Contour) Height From Floor (transfer height) 25″ 64cm
    Seat to Footplate Range (Planar) 10″-18.5″ 25-47cm
    Seat to Footplate Range (Planar) -Inverted Brackets 7″-12.5″ 18-32cm
    Kneepad Depth Range (from seat pivot) 3″-6″ 8-15cm
    Kneepad Width 8″ 20 cm
    Kneepad Dimensions 9″Hx7″W 23x18cm
    Back Height From Flat Seat to Top of Back, Short 15″ 38cm
    Back Height From Flat Seat to Top of Back, Tall 19″ 48cm
    Back Height From Contour Seat to Top of Back, Short 16.5″ 42cm
    Back Height From Contour Seat to Top of Back, Tall 20.5″ 52cm
    Weight of Basic Unit 108lbs 49kg
    Frame Footprint, Standard 24.5″x44.5″ 62x113cm
    Upholstery Black Nylon/Neuprene or Molded Urethane
    Frame Color Splatter Midnight
    Casters & Wheels (diameter) 5″ 13cm
    Lifting Mechanism Manual Hydraulic Lift
    Seat Pad Size Planar (Width) 15″ 38cm

    Shadow Tray

    Shadow Tray Size 21″x24″ 53x61cm
    Shadow Tray Height (from top of planar seat) 5.5″-11.25″ 14-29cm
    Shadow Tray Height (from top of contour seat) 7.25″-12.75″ 18-32cm
    Shadow Tray Chest Pad Depth Range (from planar back) 2″-10″ 5-25cm
    Shadow Tray Chest Pad Depth Range (from contour back) 3.5″-11.5″ 9-29cm
    Weight of Shadow Tray Assembly, Black Molded Tray 10.5lbs 4.8kg
    Add for Clear Acrylic Tray 3lbs 1.4kg
    Acrylic Tray Size 21″x24″ 53x61cm
    Oversized Tray SIze (Swing-Away Tray Front Only) 22″x29″ 56x74cm
    Shadow Tray Angle Adjust Range +40° inclines to -90°

    Options

    Frame Footprint (w/ optional Swivel Casters) 28.25″x47″ 72x119cm
    Lifting Mechanism Pow’r Up Lift
    Supine Positioning 0-90°
    T-Style Handle-Extends (each direction) 7″ 18cm
    Adjustable/Removable Actuator Handle Range +/- 15° from neutral
    Foot Straps- fits foot height of 3″-6″ 8-15cm
    Secure Foot Straps- fits foot height of 3″-6″ 8-15cm
    Kneepad Height Range +/- 1.5″ +/- 4cm
    Footplate Size Extra Small 7.75″Lx3.25″W 20x9cm
    Footplate Size Small 9.75″Lx4″W 25x11cm
    Footplate Size Medium 11.75″Lx5″W 30x13cm
    Multi-Adjustable Footplates Plantar/Dorsi +/- 20°
    Multi-Adjustable Footplates Fore/Aft +/- 0.75″ + extra 1.5″ +/- 2cm + extra 3.8cm
    Multi-Adjustable Footplates Rotation 30° left/right
    Multi-Adjustable Kneepads Width Range 5″-9″ 13-23cm
    Elbow Pad, Cutout Width 9.25″, 11″, or 13″ 24cm, 28cm, or 33cm
    Elbow Pad, Overall Width 21.5″ 55cm
    Elbow Pad, Extension (back from current table edge) 3.75″ 10cm
    Hip Support Pad Size 4″Hx6.25″W 10x16cm
    Hip Supports Width Range 9″-15″ 23-38cm
    Hip Supports Height Range +/- 1″ +/- 2.5cm
    Lateral Support Pad Size 4″Hx6″W 10x15cm
    Lateral Supports Width Range 9″-14.5″ 23-37cm
    Lateral Supports Height Range (tall back) 11″-20″ 28-51cm
    Lateral Supports Height Range (short back) 10″-17″ 25-43cm
    Lateral Supports Fore/Aft Adj 3″ 8cm
    Seat Pad Size- Contoured Narrow (Width) 11″-13″ 28-33cm
    Seat Pad Size- Contoured Wide (Width) 12″-14″ 31-36cm
    Back Pad Size Planar (Short) 11.5″Hx11.5″W 29x29cm
    Back Pad Size Planar (Tall) 15.5″Hx11.5″W 39x29cm
    Back Pad Size Contoured (Short) 10.5″Hx11″W 27x28cm
    Back Pad Size Contoured (Tall) 14″Hx12″W 36x31cm
    Chest Pad Contoured (Large) 9.5″Hx15″W 24x38cm
    Chest Strap (Pad Size) 5″Hx8″W 13x20cm
    Chest Vest – X-Style (Medium) 9″Lx9.5″W 23x24cm
    Chest Vest – X-Style (Large) 11″Lx9.5″W 28x24cm
    Chest Vest – Y-Style (Medium) 9″Lx9.5″W 23x24cm
    Chest Vest – Y-Style (Large) 11″Lx9.5″W 28x24cm
    Head Support Height Range (from seat, short back) 18″-27″ 46-69cm
    Head Support Height Range (from seat, tall back) 22″-31″ 56-79cm
    Head Support Depth Range (from backrest) -2.5″ to +1.5″ -6cm to +4cm
    Head Support-Extra Small 5″Hx8″W 13x20cm
    Head Support-Small 6″Hx10″W 15x25cm
    Head Support-Large 7″Hx14″W 18x36cm
    Positioning Belt- Hip Circumference to 66″ to 168cm
    Positioning Belt with Airline Style Buckle- Hip Circumference to 66″ to 168cm
    Chest Pad Height Range (from seat pivot) 18.5″-33″ 47-84cm
    Tray Height Range (from seat pivot) 13″-29″ 33-74cm
    Tray Fore/Aft Range (from seat pivot to standard chest pad) 1″-11″ 2.5-28cm
    Frame Footprint (Swing-Away Standard) 27.5″-44″ 70-112 cm
    Frame Footprint (Swing-Away Swivel Front) 29.5″x47.5″ 75x121cm
