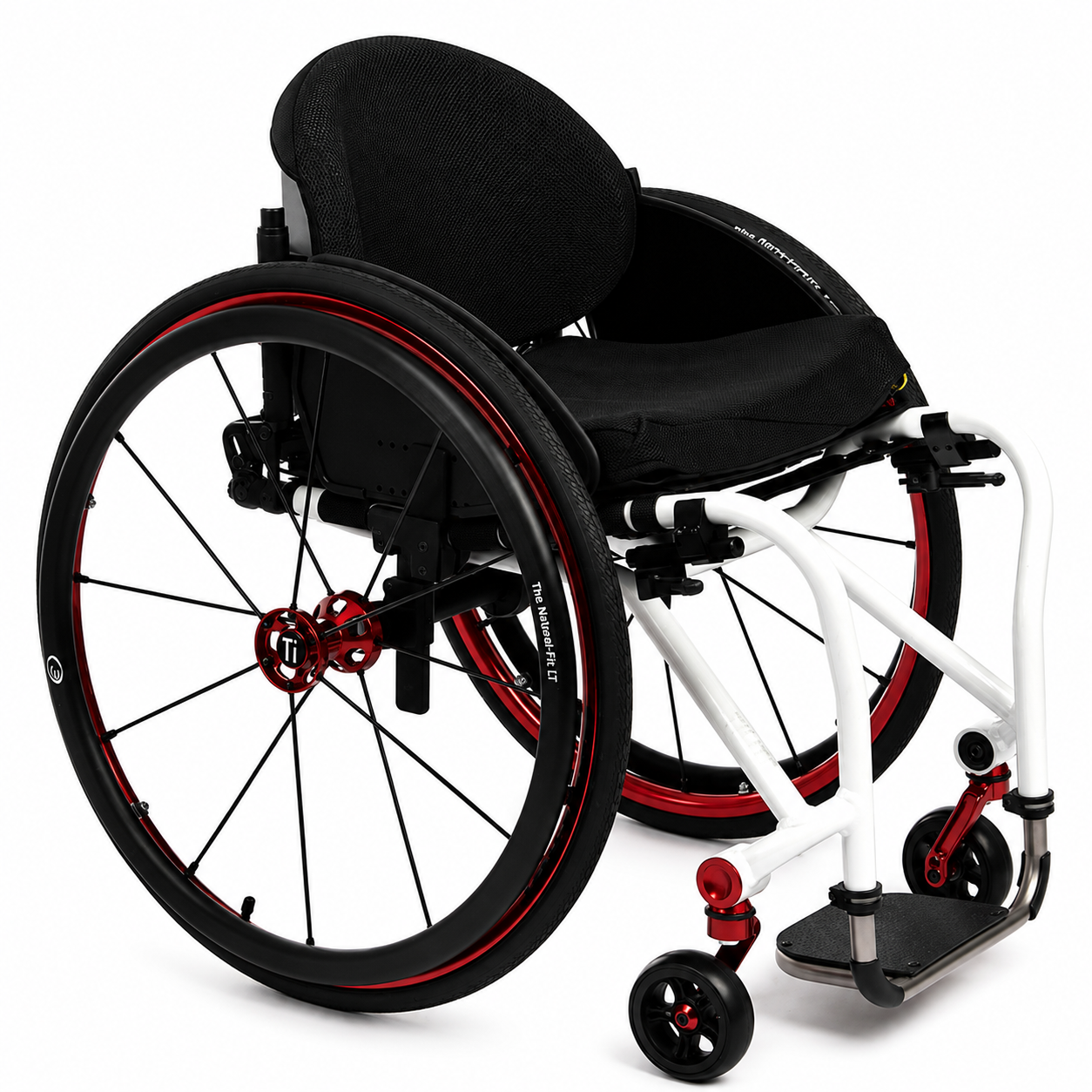

TiLite Aero T Rigid Aluminum Wheelchair

Frame Options:

Heavy Duty Frame – Aero T / TRA Not available with TR titanium Frame. 350lb weight limit. Requires tension adjustable by straps back
upholstery, billet aluminum front wheels, Shadow Spinergy SPOX or LX rear wheels. Only available with 0° or 2° camber. Not available
with Slipstream or Glide forks, carbon fiber camber tube or velcro adjustable upholstery

Q’Straint Adaptable Frame Not available with TR titanium Frame. 350lb weight limit. Requires tension adjustable by straps back
upholstery, billet aluminum front wheels, folding backrest, Shadow, Spinergy SPOX or LX rear wheels. Only available with 0° or 2°
camber. Not available with Slipstream or Glide fork, open loop footrest, V-front taper or carbon fiber camber tube.

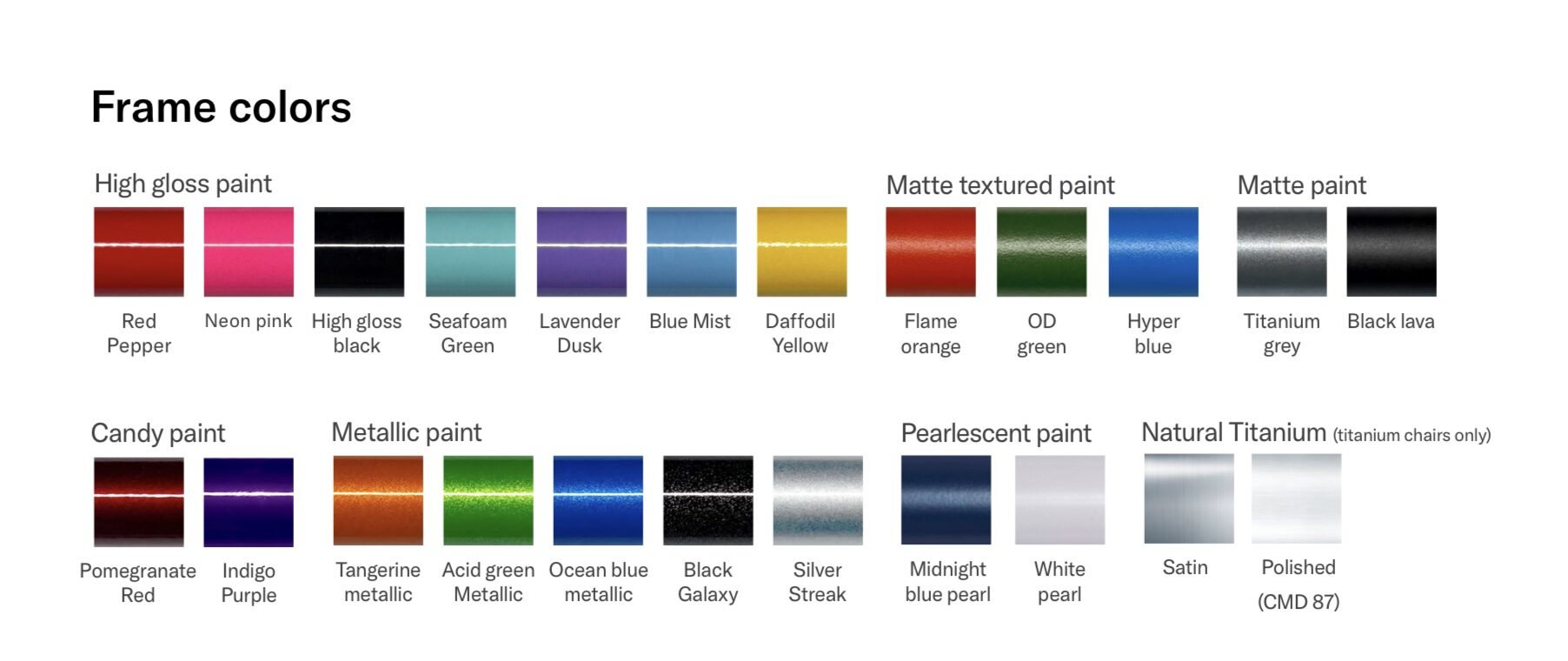

Color Anodized Package:

Color Anodize Package includes: Aluminum Camber Tube (Anodized Color not available with Power Adaptable Frame), Camber Clamp, Footrest Clamp and Caster Fork. If no anodize color is selected, the default will be black.)

Seat Width (A):

Measure from outside of seat tube at back post to the outside of the opposite seat tube at back post.

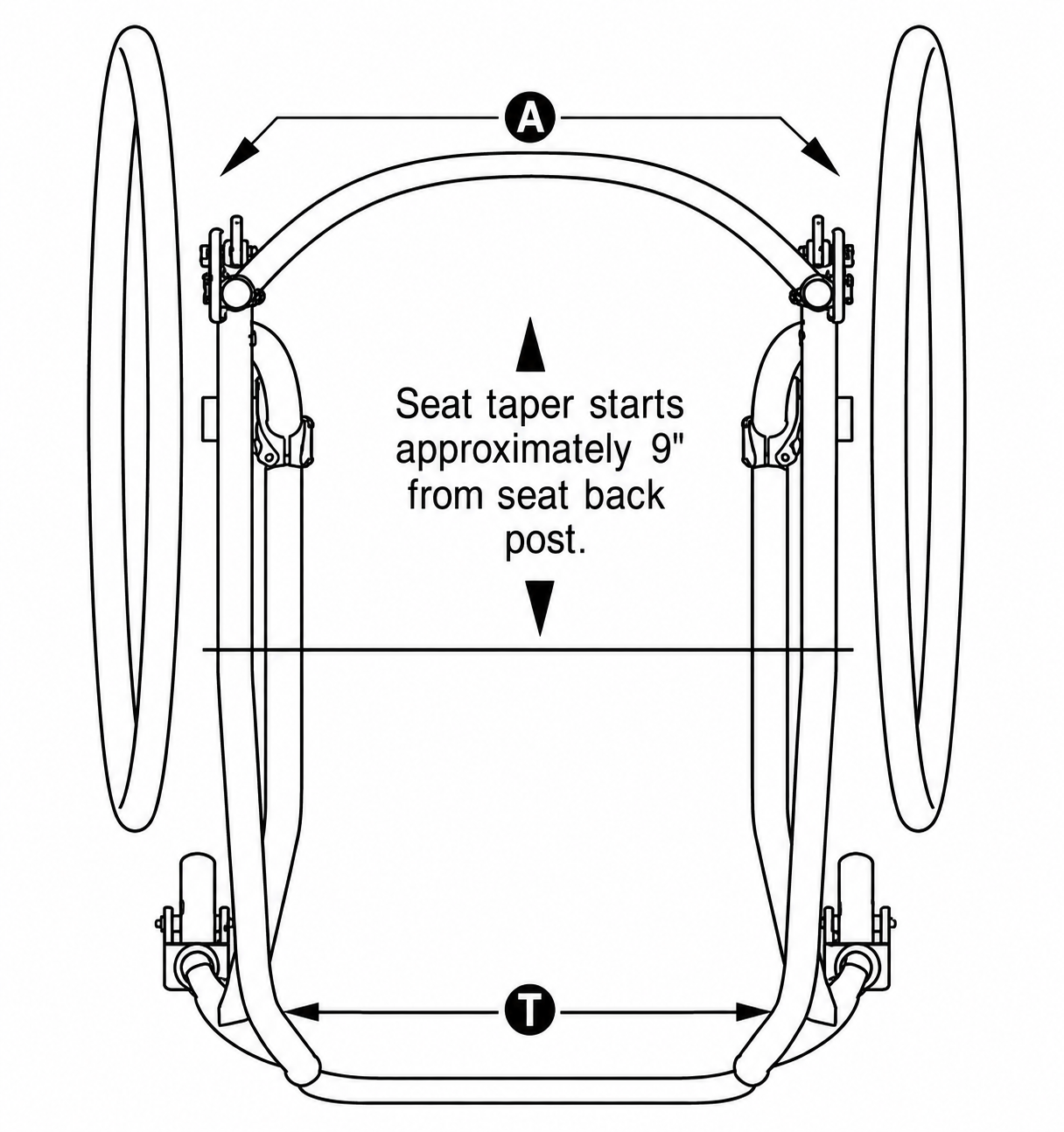

Front Seat Width (T):

Measure from inside of front frame tube to inside of opposite front frame tube. (Required with V-Front End V. Not Available with Standard Front End I.)

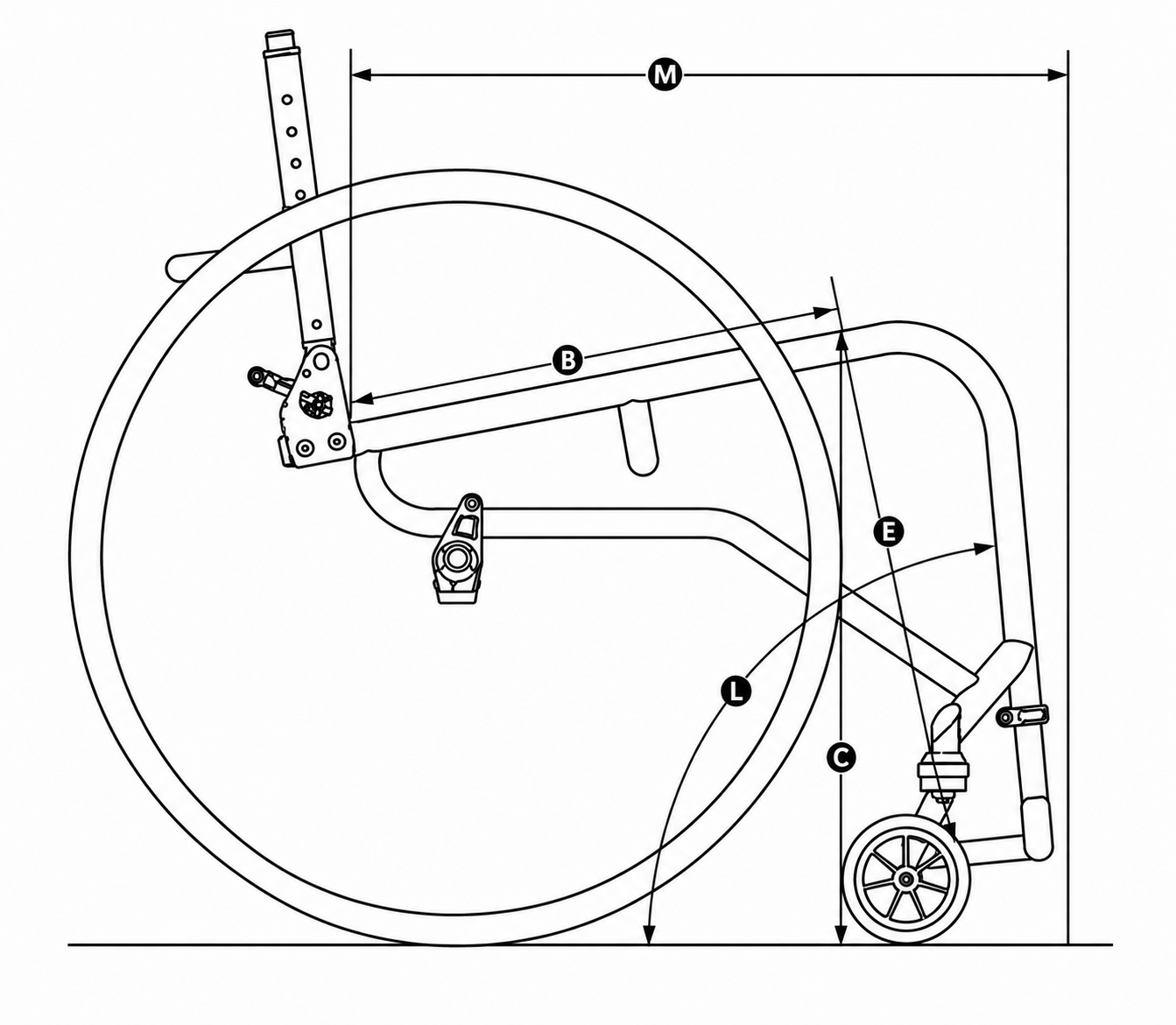

Seat Depth (B):

Measure from front of back post to the front edge of seat sling. Front edge of seat sling will be at the beginning of the bend at front of chair frame, unless Frog Legs® or a 90º Front Angle is ordered, in which case front edge of seat sling begins approximately 1” behind the bend.

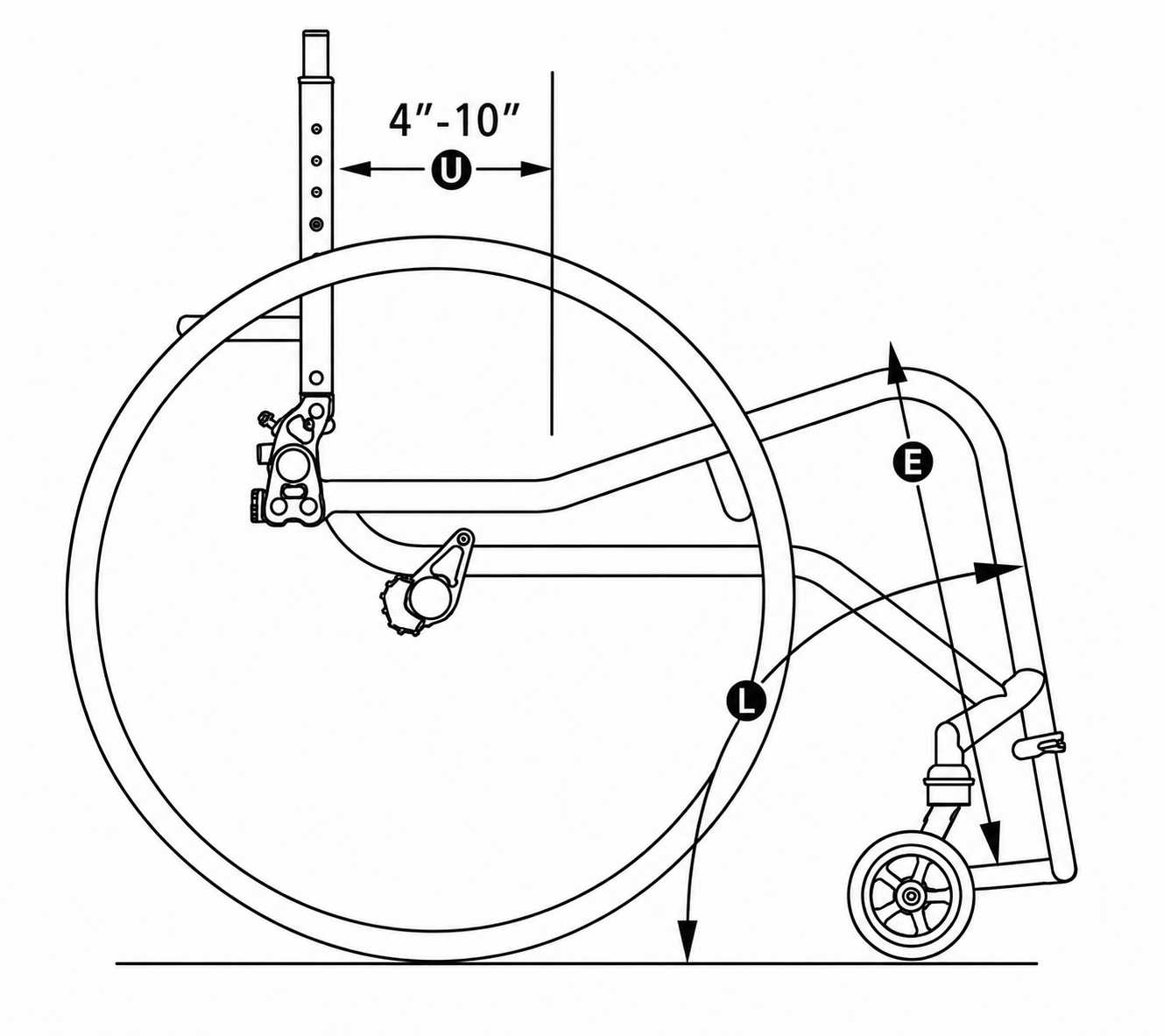

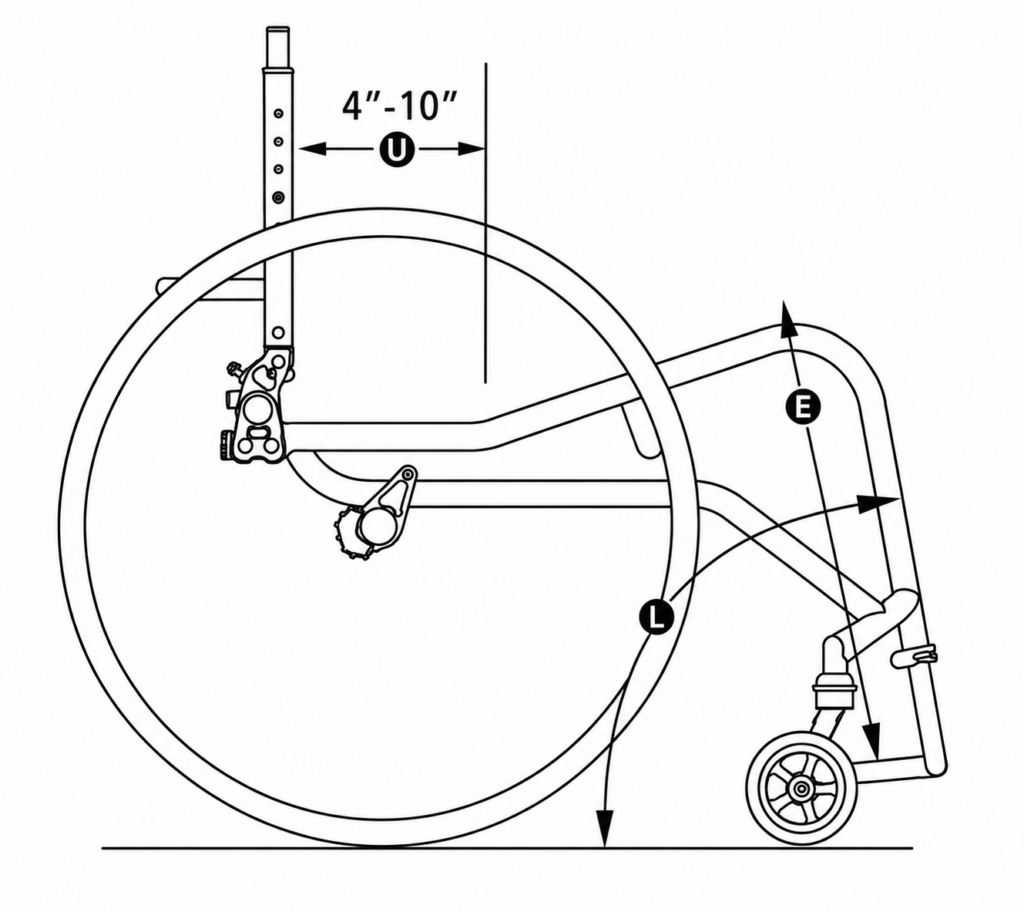

Ergonomic Seat: (U)
Aero T Ergonomic Seat (Not available with V-Front or Seat Taper, Seat Back that Locks When Folded, Desk Arms, Depth Adjustable Backrests, Fold Down Rigid Sideguards, Fendered Adjustable Sideguards, Solid Seat, Tension Adjustable Bolt On Seat Upholstery, or the Curve cushion. Free upgrade to Tension Adjustable by Straps Seat Upholstery included.)

Front Seat Height (C):

Measure from floor to top of seat tube at beginning of bend. Aero T adjusts up and down in 1.2″ increments.

Rear Seat Height (D): Measure from floor to top of seat tube at back post.

TFA1 – Front Angle (L): – Measure from frame front to floor.

-85° (n/a w/6″ Front Wheels)

-90° (n/a w/5″ or 6″ Front Wheels)

TFA2 – Overall Frame Length (M) – Measure from front of backrest to Front Edge of Footrest.

Seat to Footrest (E):

Measure from front edge of seat sling to top rear of Footrest. Measurement must be at least 2” shorter than Front Seat Height “.

Due to current supplier issues, titanium footrest options will use aluminum tubing instead of titanium and will be powder coated Black Lava. During this time, these options will be available in aluminum at no charge to our customers. If a titanium footrest is desired at a later point, the option will be offered at on-chair pricing when available.

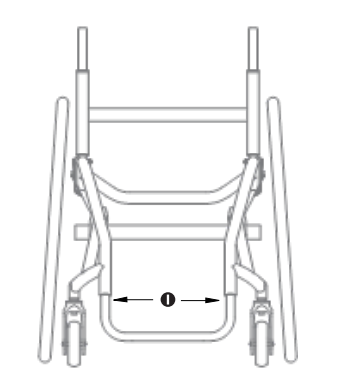

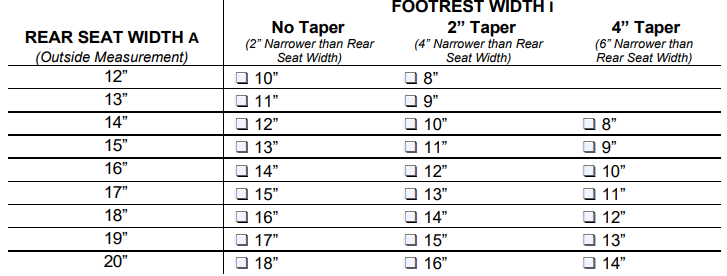

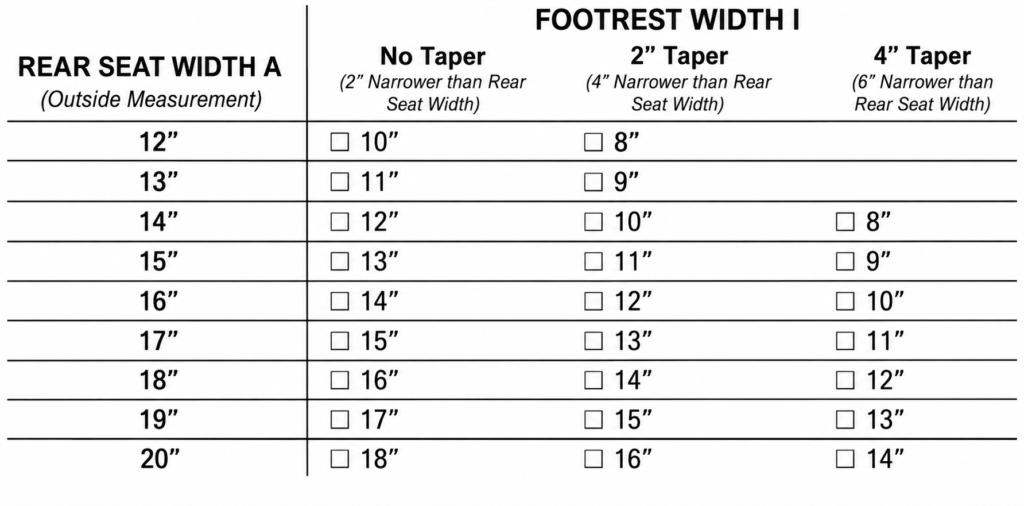

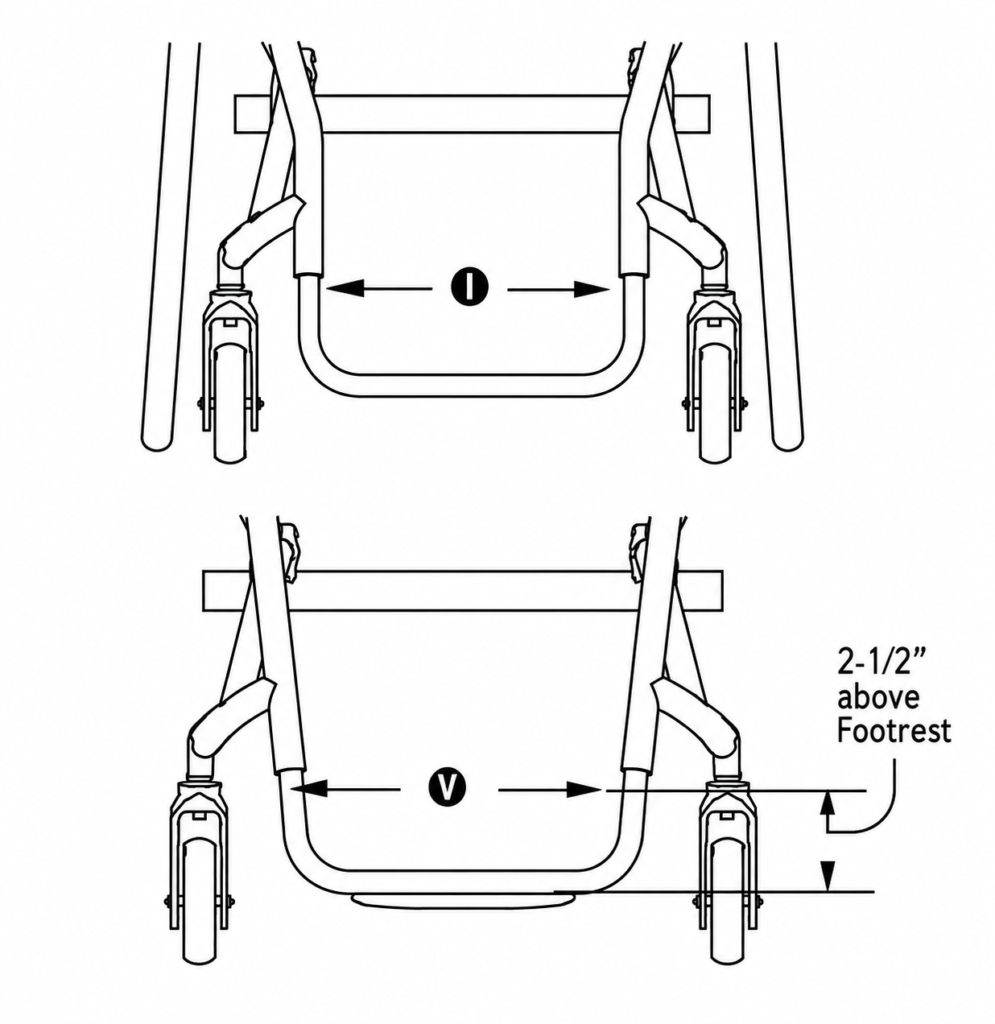

Footrest Width (I):

Tension Adjustable by Straps – Padded Nylon (Required w/Aluminum Fendered Side Guards and Fold-Down Push Handles)

Tension Adjustable by Straps – AIR Breathable Upholstery (n/a w/Ultrasuede Backrest Stripe)(Required w/Aluminum Fendered Side Guards and Fold-Down Push Handles)

Seat Back Type:

TSB1 – Folding Aluminum Adjustable Height Back Required for heavy duty frame. Standard
TSB2 – Folding Titanium Adjustable Height Back, Rounded Rigidizer Bar Titanium back will match frame finish.
TSB15 – Non-Folding Fixed Height Titanium Back, Rounded Rigidizer Bar Not available with Aero T, TRA or push handles. Titanium back will match frame finish.

Backrest Rigidizer Bars:

TSB11 – Backrest Locks When Folded Available on all backs. Not available with ergonomic seat. Standard
TSB12 – 4” Deep Backrest Rigidizer Bar . Not a rounded style rigidizer bar. Not available with non-folding, fixed height titanium back type. No charge
TSB3 –  TiShaft Back Release Bar, Aluminum. Not available with non-folding or fixed height titanium backs. Standard
TSB5 –  TiShaft Back Release Bar, 2×2 Twill Weave Carbon Fiber. Not available with non-folding or fixed height titanium backs.

Push Handles:

TSB6 –  Integrated Push Handles
TSB7 –  Integrated Fold-Down Push Handles – Requires tension adjustable by straps back upholstery.
TSB8 –  Bolt-On Push Handles – Includes 4” deep backrest rigidizer bar.
TSB9 –  Bolt-On Height-Adjustable Push Handles – Includes 4” deep backrest rigidizer bar.

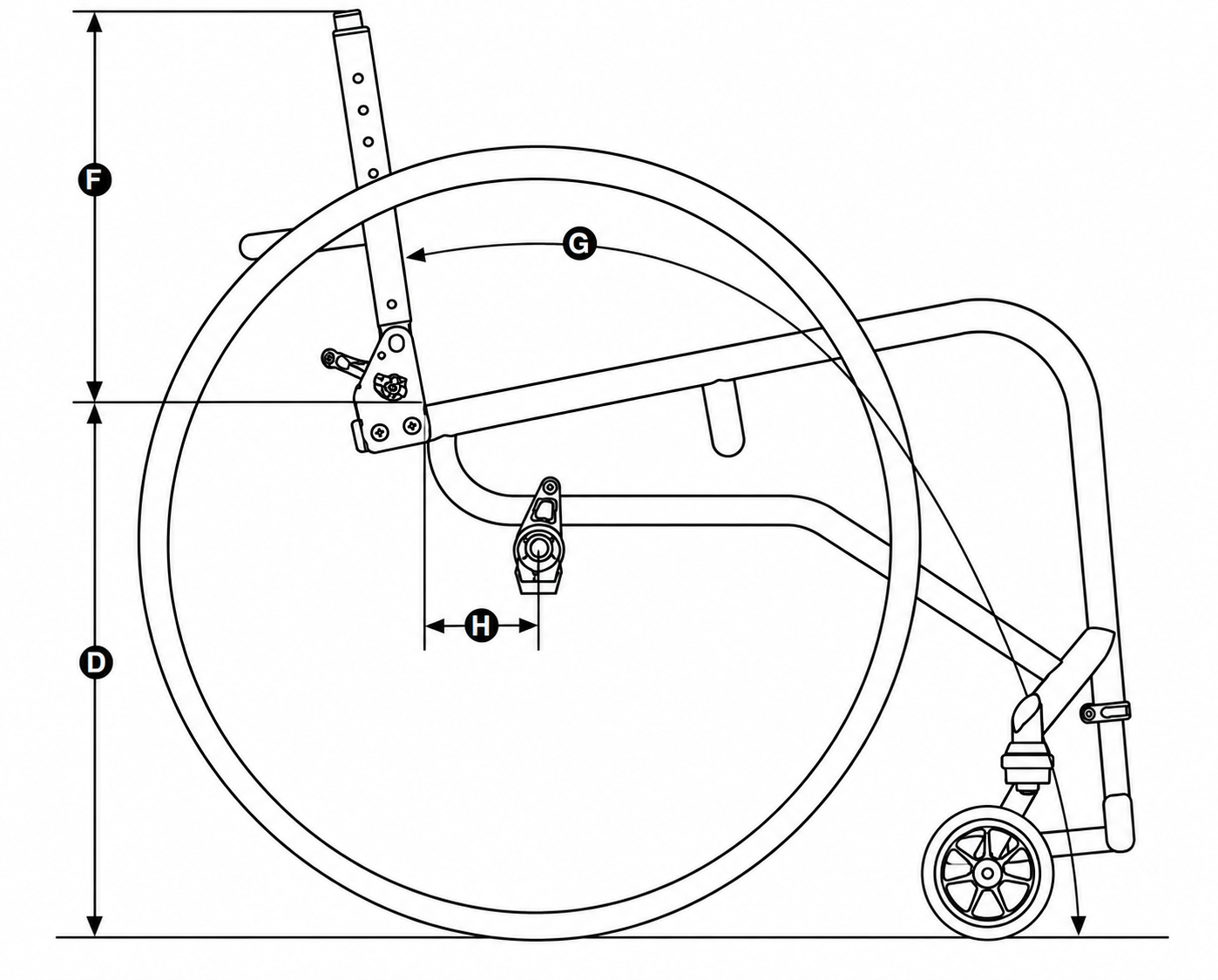

Seat Back Angle (G):

Measure angle from front of back post to floor.

Center of Gravity (H):

Measure from front of back post at the seat tube to the center of the rear axle. If no center of gravity is selected, chair will ship with the center of gravity in the rearward-most position.

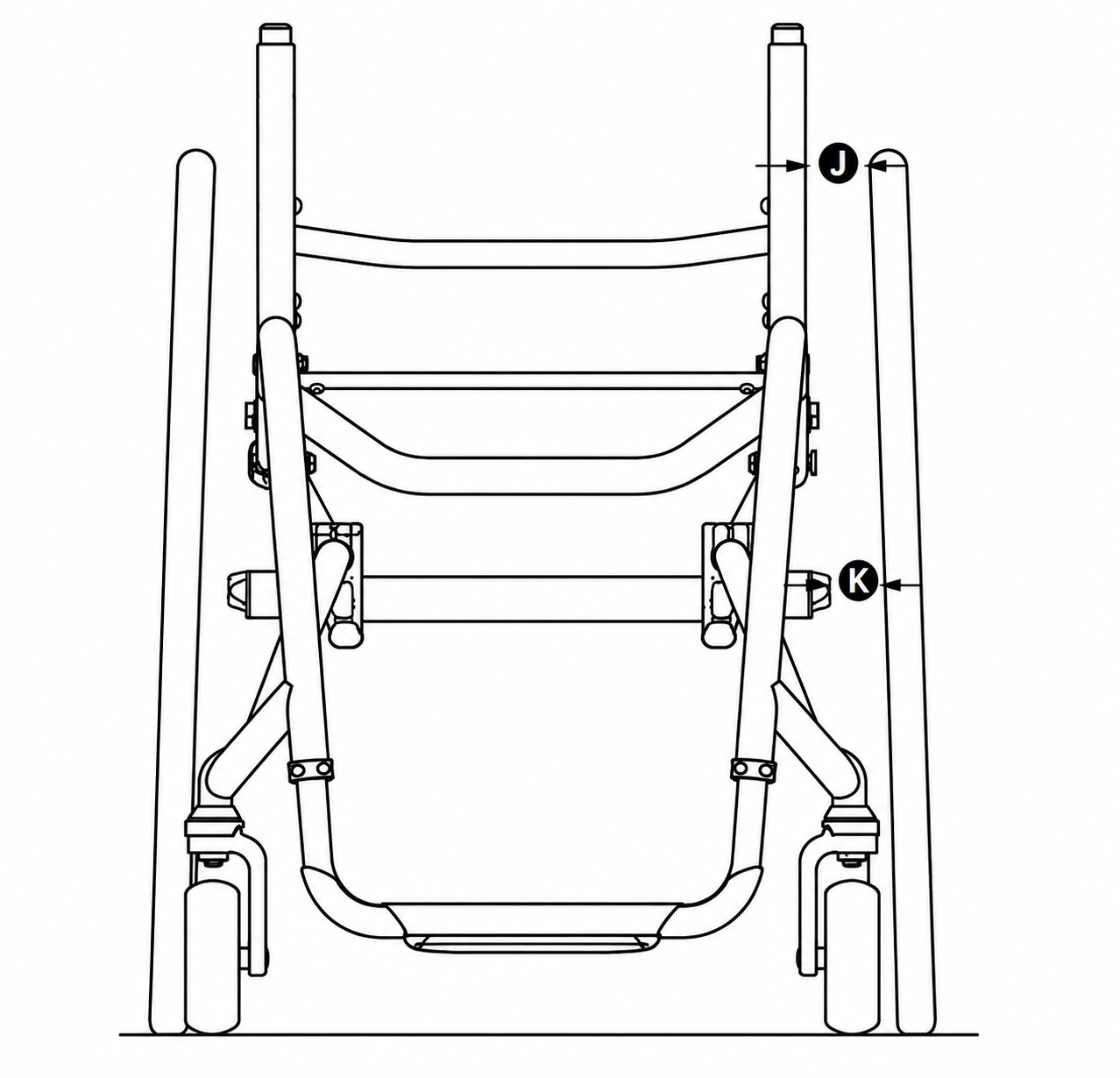

Rear Wheel Spacing (J):

Measure from outside of seat back post to inside of rear tire. .75” Rear Wheel Spacing not available with 0° or 2° Camber (K).

Camber (K): 8° camber may be available through our Creative Mobility Division

Camber (K):

TCBR4 –  Carbon Fiber Camber Tube Only available on TR and only with 0°, 2°, 4° zero play plugs. Not available with anti-tips, or heavy duty frame.

Front Forks Options and Weight Ranges:

Standard

Slipstream Single-sided

Glide Suspensions

-125 Lbs

-125-180 Lbs

-180-265 Lbs

Titanium Stems

Rear Wheel Type:

(See rear seat height ranges chart for rear seat height ‘D’ limitations.)

XOAD1 – One Arm Drive System – Available with 24” mag wheels and standard aluminum handrim only. Rear seat height, camber or
axle restrictions may apply. Install on Left or Right.

XRW14 – TiLite SHADOW Rear Wheel – Select size. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)

XRW7 – Spinergy SPOX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Green

XRW8 – Spinergy LX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth. Only available with heavy
duty frame when 0° or 2° camber is selected.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Orange Pink Purple Green

ZRW9 –  Spinergy – Design Lab LX Rear Wheel Black spokes only. Select size and anodizing color. 25” and 26” wheels require 15” minimum seat
depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Gold Green Blue Red Purple Orange

XRW16 – Spinergy Carbon Blade Rear Wheel – Select size. Not available with heavy duty frame. 25” wheels require 15” minimum seat depth.

-24” (540) 25” (559)

XRW17 – X-Core Mag (Not available with Heavy Duty Frame, Short Tabs, Quad Release Axles or Spoke Guards. Available with Aluminum Sliver Anodized Handrims only.)

-22”(501) 24”(540)

Titanium Quick Release (n/aTiLite High Flange Hub, TWIN-STAR Exchange, DASH, SHADOW, Mags, 26″(590) Spinergy SPOX or LX Rear Wheels or Power Adaptable Frame)

Quad Release (n/a w/Mags or 26”(590) Spinergy Spox or LX Rear Wheels)
