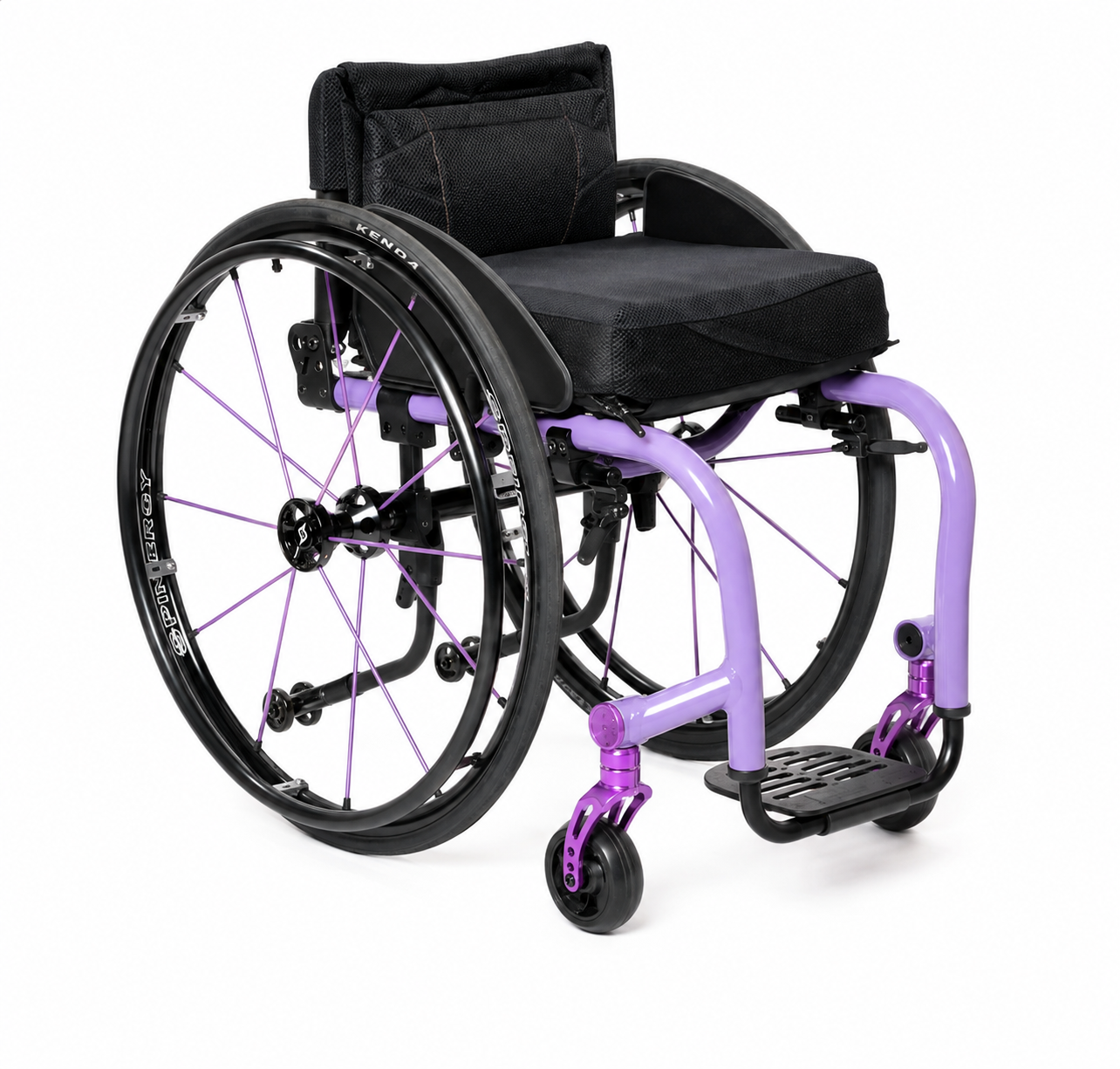

TiLite Z Rigid Aluminum Wheelchair

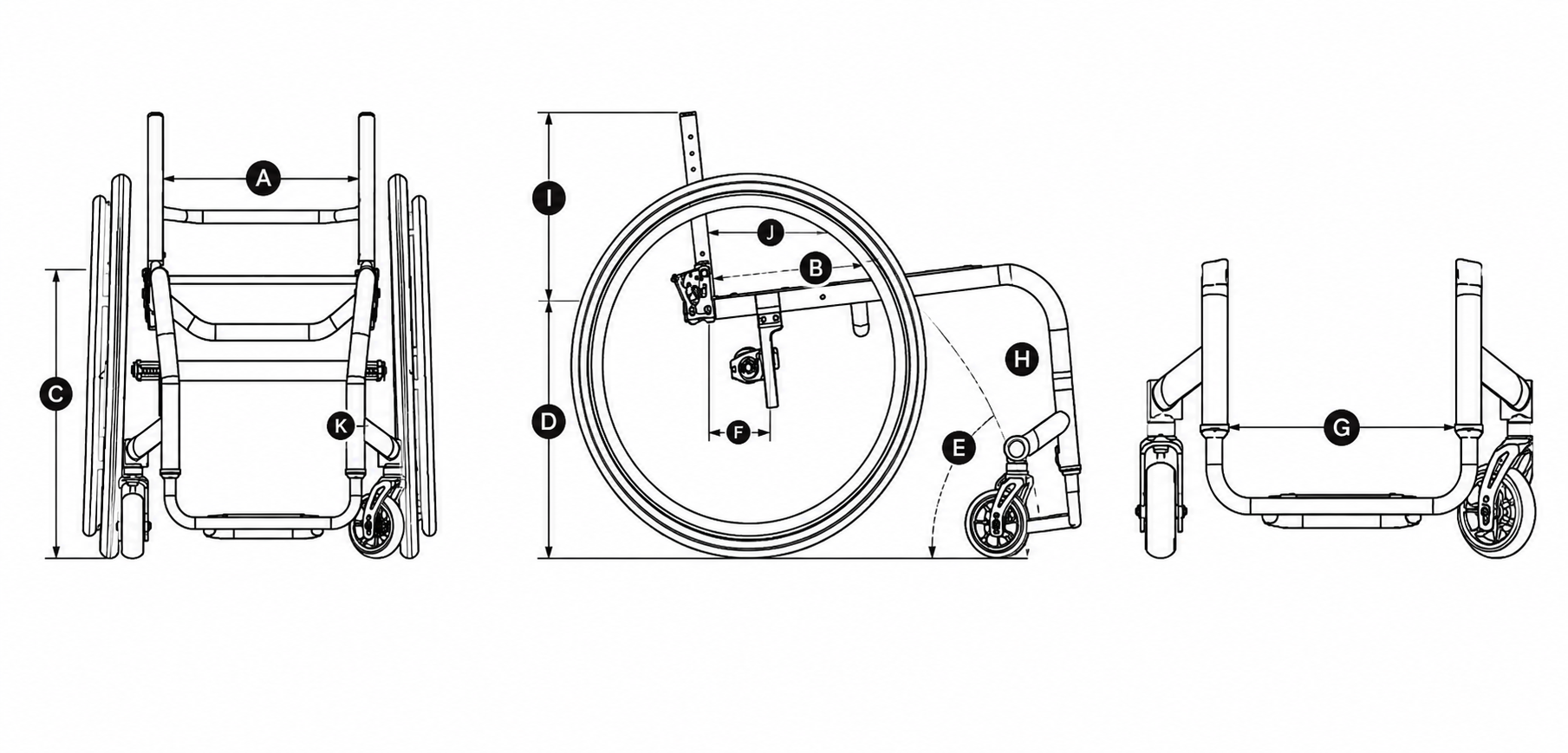

Measure from front of seat sling to beginning of frame bend. Frame bend will start 1″ in front of seat sling unless Custom Frame Depth is specified, or the combination of specifications affect the rolling dynamics of the chair.

Measure from front of back post at the seat tube to the center of the rear axle.

Measure from front edge of seat sling to top rear of footrest.

Measure from front edge of seat sling to top rear of footrest.

‘H’  – High Mount – Taper will affect displayed ranges.

Backs over 20″ wide or tall subject to to increasing pricing.

Rear Wheel Type:

(See rear seat height ranges chart for rear seat height ‘D’ limitations.)

XRW14 – TiLite SHADOW Rear Wheel – Select size. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)

XRW7 – Spinergy SPOX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Green

XRW8 – Spinergy LX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth. Only available with heavy
duty frame when 0° or 2° camber is selected.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Orange Pink Purple Green

ZRW9 –  Spinergy – Design Lab LX Rear Wheel Black spokes only. Select size and anodizing color. 25” and 26” wheels require 15” minimum seat
depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Gold Green Blue Red Purple Orange

XRW17 – X-Core Mag (Not available with Heavy Duty Frame, Short Tabs, Quad Release Axles or Spoke Guards. Available with Aluminum Sliver Anodized Handrims only.)

-22”(501) 24”(540)
