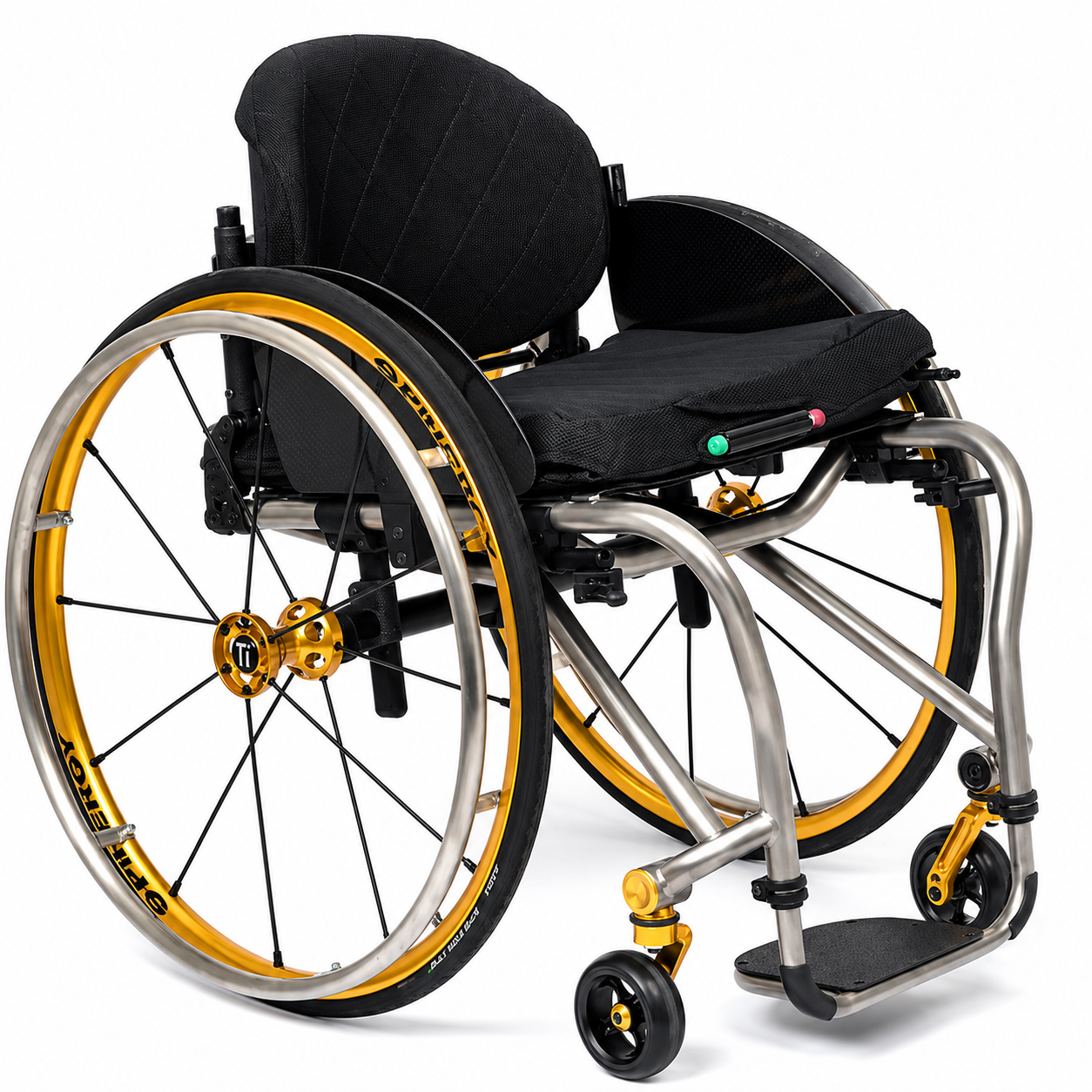

TiLite TRA Rigid Titanium Wheelchair

Frame Options:

THDR1 – Heavy Duty Frame Not available with TR titanium Frame. 350lb weight limit. Requires tension adjustable by straps back upholstery.
Requires folding aluminum adjustable height backrest, billet aluminum front wheels, Shadow or Spinergy SPOX rear wheels. LX rear
wheels only available with 0° or 2° camber. Not with Slipstream fork, velcro adjustable upholstery or Glide forks. carbon fiber camber tube.
No charge

TQST1 – Q’Straint Adaptable Frame Not available with TR titanium Frame. 350lb weight limit. Requires tension adjustable by straps back
upholstery. Requires folding aluminum adjustable height backrest, billet aluminum front wheels, Shadow or Spinergy SPOX rear wheels.
LX rear wheels only available with 0° or 2° camber. Not with Slipstream fork, velcro adjustable upholstery, open loop footrest, V-front taper
or Glide forks. carbon fiber camber tube.
No charge

TPWR1  – Power Adaptable Frame Requires LiteSpeed billet aluminum front wheel and 0° camber. Not with single-sided forks or titanium camber
tubes. Not required for SmartDrive.
No charge

TRFR1 – Reinforced Frame

Liquid    Bloom

  Rebel    Vector

Color Anodized:

Includes caster mount, caster fork and caster caps. If no anodize color is selected, default will be black.

Rear Seat Width (A):

Seat Width: (A)

Measure from outside of seat tube at back post to the outside of the opposite
seat tube at back post.

Front Seat Width: (T)

Measure from inside of front frame tube to inside of opposite front frame tube.

Seat Depth: (B)

Measure from front of back post to the front edge of seat sling. Front edge of seat sling will be .5” behind bend at front of chair frame, unless Glide™ or a 90º Front Angle is ordered, in which case front edge of seat sling begins approximately 1” behind the bend.

Ergonomic Seat: (U)
TRA Ergonomic Seat (Not available with V-Front or Seat Taper, Seat Back that Locks When Folded, Desk Arms, Depth Adjustable Backrests, Fold Down Rigid Sideguards, Solid Seat, Tension Adjustable Bolt On Seat Upholstery, or the Curve cushion. Free upgrade to Tension Adjustable by Straps Seat Upholstery included.)

Front Seat Height: (C)

Measure from floor to top of seat tube at the beginning of bend. TRA adjusts up and down in 1/2″ increments.

Rear Seat Height: (D)

Measure from floor to top of seat tube at the back post. TRA adjusts up and down in 1/2″ increments.

Front Angle (L) or Overall Frame Length (M):

Select one. If Overall Frame Length is selected, front angle will be bent to achieve requested length.

Front Angle (L) Measure from frame front to floor.

Overall Frame Length (M) Measure from front of backrest to Front Edge of Footrest.

Front End Type/Footrest Width:

Select standard front end ‘I’ if no seat taper ‘T’ has been selected. Select V-front end ‘V’ if a seat taper ‘T’ has been selected.

TFE1 – No V-Front Taper ‘I’ – Find your rear seat width ‘A’ in the chart below and select one of the options to the right. Measure from inside of front
frame tube to inside of opposite front frame tube.

TFE2 V-Front Taper ‘V’ – Measure from inside of front frame tube to inside of opposite front frame tube 2.5” above footrest. Titanium footrests
have 1” of adjustment up and down. Not with ergonomic seat frames.
9” 10” 11” 12” 13” 14” 15”

CMD008 – Custom Abducted Front Frame Width – Adapted footrest and/or front seat width. Please specify desired front seat width and desired
footrest width to the nearest 0.5” in the Notes section. Some limitations may apply.

Seat to Footrest (E):

Measure from front edge of seat sling to top rear of footrest. Measurement must be at least 2” shorter than Front Seat Height (C)

Custom Height Backrest Bar:

The Standard Rigidizer Bar height is 5” above the Seat Sling for a short, 6” for a medium and 10” for a tall. Please note standard 4″ Rigidizer Bar is available with Aluminum and Titanium Backrest options. Not available with a Non-Folding, Fixed Height Titanium Seat Back Type. Not a rounded style.

Custom Height Rigidizer Bar must be at least 4-1/2” above Seat Sling Maximum Height is 3” less than Lowest Seat Back Height.

Seat Back Height: (F)

Measure from top of back post to top of seat tube at rear of frame.

Seat Back Height: (F)

Measure from top of back post to top of seat tube at rear of frame.

Seat Back Angle: (G)

Measure angle from front of back post to floor.

Center of Gravity: (H)

Measure from front of back post at the seat tube to the center of the rear axle. If no center of gravity is selected, chair will ship with the center of gravity in the reward-most position.

Rear Wheel Spacing: (J)

Measure from outside of seat back post to inside of rear tire. .75” Rear Wheel Spacing not available with 0° or 2° Camber (K).

Camber: (K)

Seat Upholstery:

CMD018 – Custom iSleeve – Provide sleeve width and depth in inches in the notes sections on the bottom of the form. Best when used with tension adjustable bolt-on upholstery.

Rear Wheel Type:

(See rear seat height ranges chart for rear seat height ‘D’ limitations.)

XOAD1 – One Arm Drive System – Available with 24” mag wheels and standard aluminum handrim only. Rear seat height, camber or
axle restrictions may apply. Install on Left or Right.

XRW14 – TiLite SHADOW Rear Wheel – Select size. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)

XRW7 – Spinergy SPOX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Green

XRW8 – Spinergy LX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth. Only available with heavy
duty frame when 0° or 2° camber is selected.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Orange Pink Purple Green

ZRW9 –  Spinergy – Design Lab LX Rear Wheel Black spokes only. Select size and anodizing color. 25” and 26” wheels require 15” minimum seat
depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Gold Green Blue Red Purple Orange

XRW16 – Spinergy Carbon Blade Rear Wheel – Select size. Not available with heavy duty frame. 25” wheels require 15” minimum seat depth.

-24” (540) 25” (559)

XRW17 – X-Core Mag (Not available with Heavy Duty Frame, Short Tabs, Quad Release Axles or Spoke Guards. Available with Aluminum Sliver Anodized Handrims only.)

-22”(501) 24”(540)
