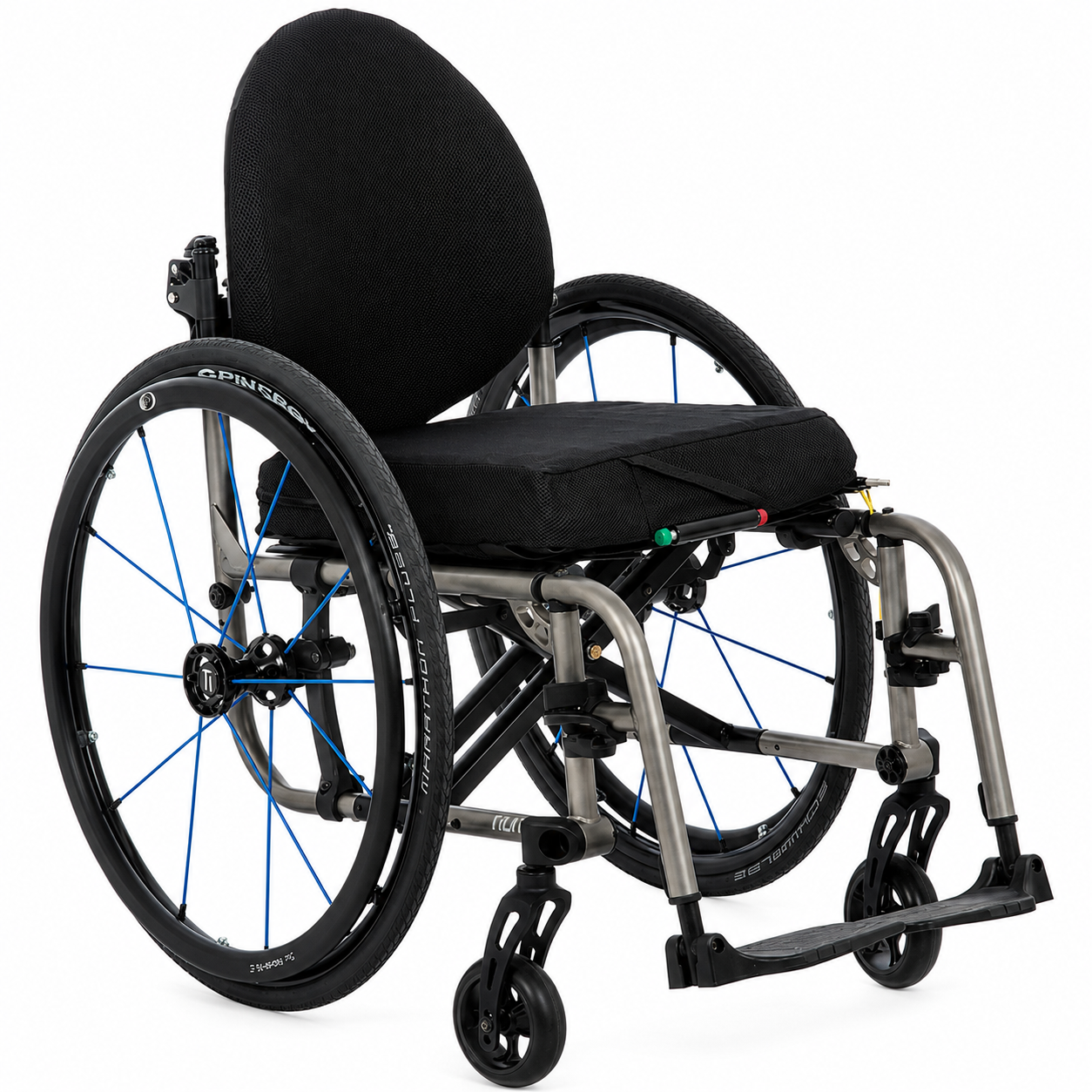

TiLite 2GX Folding Titanium Wheelchair

Consists of four tie-down brackets. Unoccupied use only. Not available when swing away frame and
heavy duty frame are both selected. Not with swing away tubular armrests or swing away flip back tubular armrests. Requires a
minimum seat depth of 14”, or 15” with hemi height frame.

Seamless power assist experience Pushing a manual wheelchair can put stress on the upper body and lead to serious issues in the future. SmartDrive gives you freedom to do more. It moves with you and it’s so lightweight, you don’t even know it’s there. You can spin in place, be in a wheelie, or hop off curbs. Empower your active lifestyle. Take the strain off your shoulders—without slowing down. SmartDrive offers a range of controls to deliver a seamless power assist experience, providing opportunity for 80% fewer pushes. SmartDrive was created with manual wheelchair users in mind. The mounting location, the ergonomic handle, the weight, and the OmniWheel were all designed to give manual wheelchair user access to fewer pushes.

PushTracker E3 Upgraded processor and improved battery life, with a set-up that takes just minutes The PushTracker E3 takes everything that was good about the PushTracker E2 and makes it better! It comes with increased memory and an upgraded processor, which bring battery life improvements and make the PushTracker more reliable than ever. Navigating the SmartDrive MX2+ App is easier thanks to the responsiveness of the PushTracker E3. Experience a quick setup in under 5 minutes with no phone or Wi-Fi required. With gesture-activated controls, you can start your SmartDrive with a simple tap of your hand—no pushing or reaching necessary! Download the SmartDrive MX2+ app from Google Play

Original PushTracker™ The original PushTracker was the first of its kind, introducing Bluetooth technology and tap gestures to the world as a way of controlling the device. Tap gestures allow you to control the SmartDrive without having to push the wheel to start and SwitchControl can still be used in combination. The original PushTracker is great for those who want or need a simpler wearable choice to control their SmartDrive. Fine tune your performance and keep everything up to date using the new PushTracker App.

SmartDrive MX2+ App, now on Apple Watch! You asked, we listened; SmartDrive MX2+ is now compatible with Apple Watch! Easily control your SmartDrive with tap gestures, change settings, and track distances and battery levels right from your wrist. Enjoy full access to your Apple Watch and experience best-in-class battery performance when using it with your SmartDrive. Already have an Apple Watch? Download the SmartDrive MX2+ app FOR FREE from the Apple App Store. SmartDrive MX2+ App for Apple Watch is compatible with Apple Watches Series 5 and newer running watchOS 8 or newer.

SwitchControl Now Comes Standard

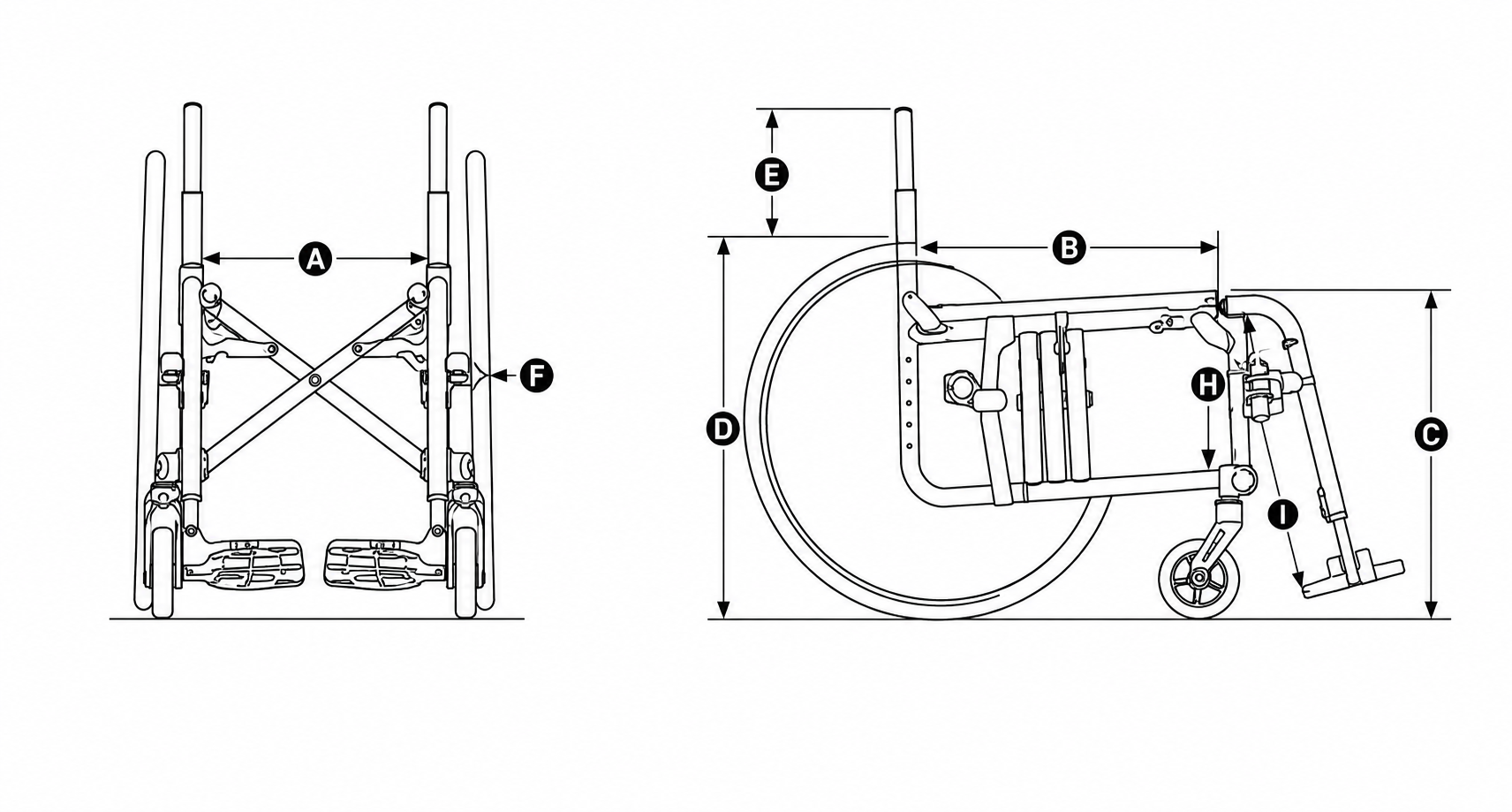

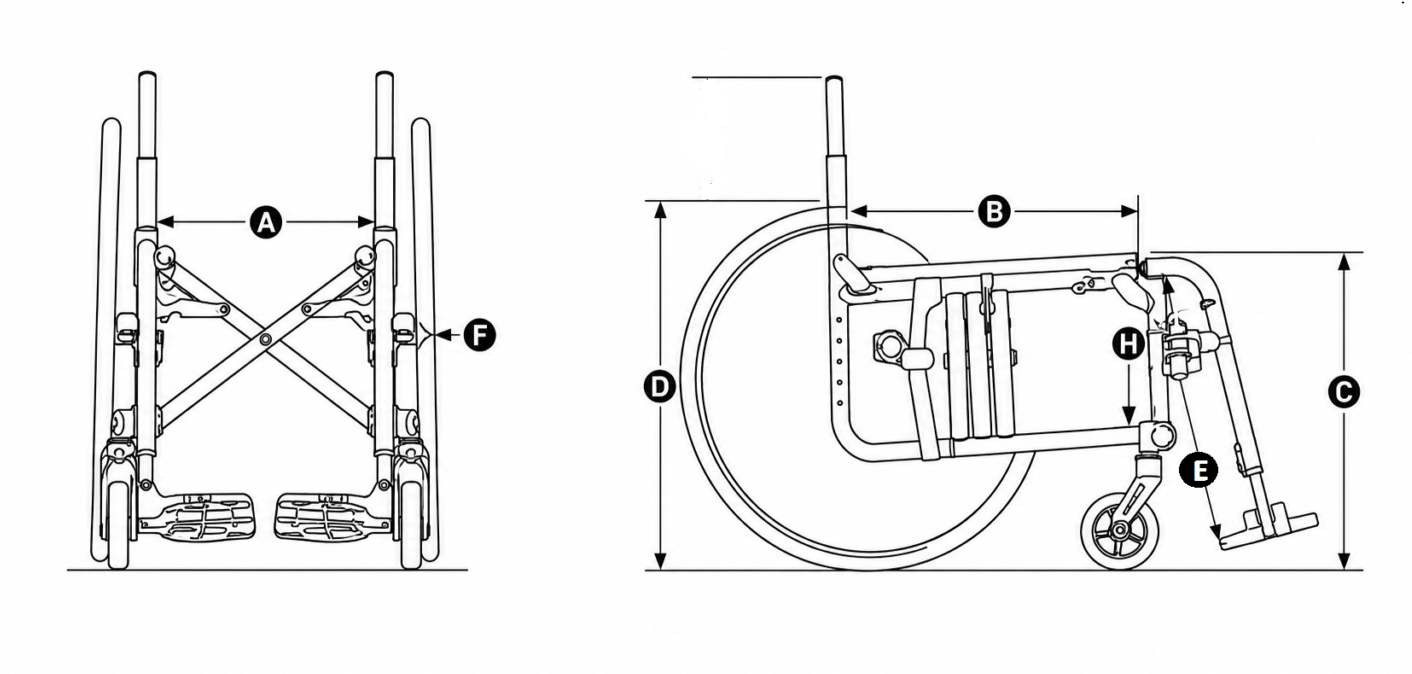

Seat Width (A):

Measure from outside of seat tube at back post to the outside of the opposite seat tube at back post.

Seat Width (A):

Measure from outside of seat tube at back post to the outside of the opposite seat tube at back post.

Seat Depth (B):

Measure from 0.5” in front of back posts to the front edge of seat sling. 12”-14” seat depths not with 25”-26” rear wheels.

Front Seat Height (C):

Measure from floor to top of seat tube at front edge of seat sling (at beginning of bend). Adjustable in 1/2” increments.  13.5”-14” front seat height requires hemi height frame. 20.5”-21.5” front seat height not with hemi height frame.

Rear Seat Height (D):

Measure from floor to top of seat tube at back post.

Seat Back Types:

XSB13 – Fixed Angle, Height Adjustable Back Standard
XLB1 – Folding Stabilizer Bar Required with transit tie-down option unless depth adjustable backrest is selected. Includes tension adjustable
by strap back upholstery.
XSB14 – Fixed Angle, Height Adjustable Back w/8° Bend Not available with heavy duty frame.
XSB18 – Folding, Angle and Height Adjustable Back Not available with heavy duty frame.
XSB16 – Depth Adjustable Back Frame Not available with hemi height frame, heavy duty frame, 19”-20” seat depths, swing away tubular or
swing away flip back armrests. Seat depths 12”.

Fixed Angle Adjustable Back Height (E):

Measure from top of back post to top of seat tube at rear of frame. 11”-15” back height not with heavy duty frame, swing away tubular armrests 12”-15”, bolt-on height
adjustable push handles or folding stabilizer bar. Set at 1” increments

Folding Angle Adjustable Back Height (E):

Not with folding stabilizer bar or heavy duty frame. Set at 1” increments

Front Frame Angle (H):

Front angle is measured from inside of front frame tube to top of bottom frame tube.

Seat to Footrest Length (E):

Measure from front edge of seat sling to top rear of footrest

Elevating Legrests: seat to footrest (E)

Options: 14″, 15″, 16″, 17″ 18″ 19″ 20″ or 21″

Camber (K):  0°,  2°,  4°,  6°

Front Forks Options and Weight Ranges:

Standard

Glide Suspensions

-125 Lbs

-125-180 Lbs

-180-265 Lbs

(Black anodize only. N/A w/8” Front Wheels or Heavy Duty Frame)

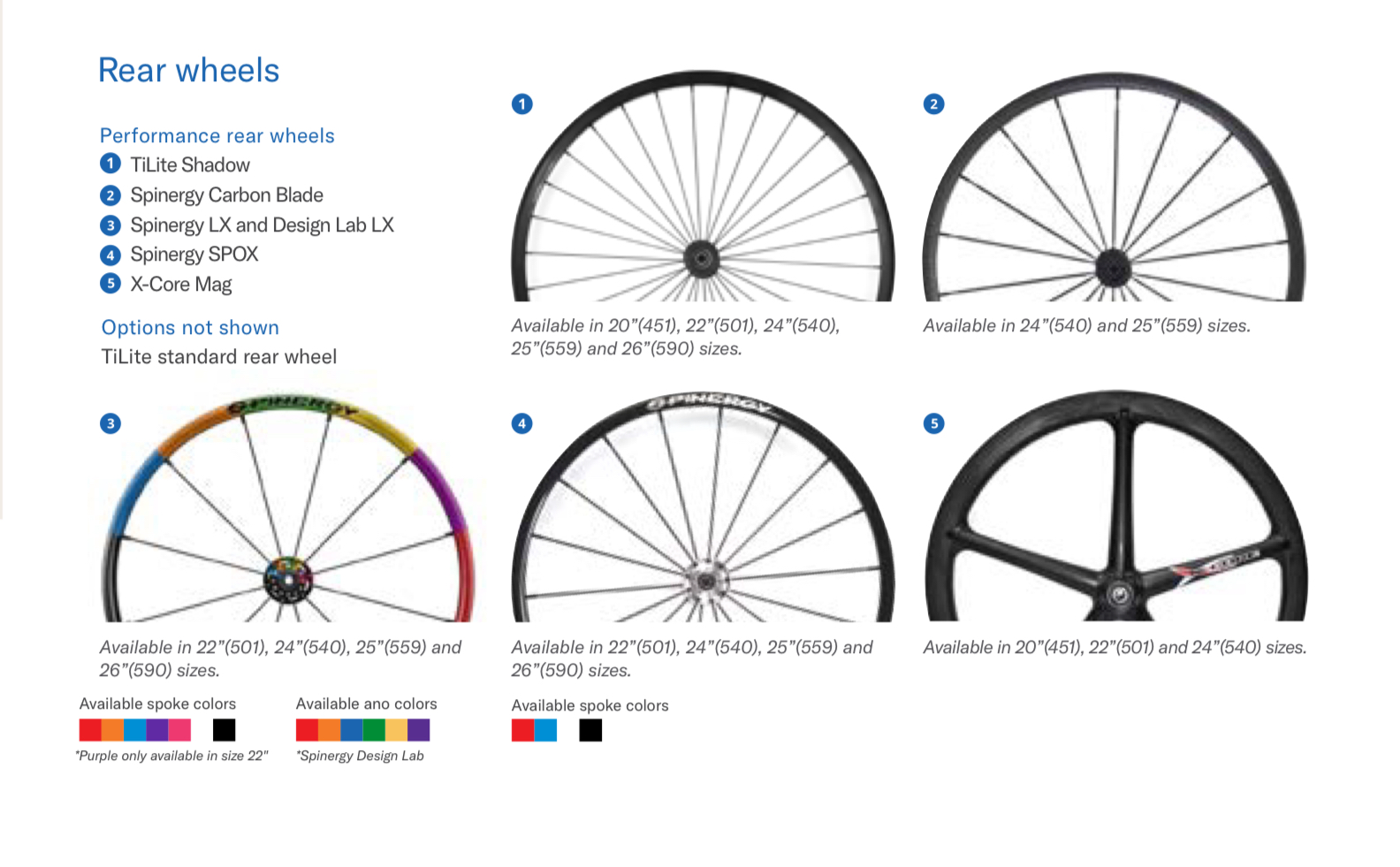

Rear Wheel Type:

(See rear seat height ranges chart for rear seat height ‘D’ limitations.)

XOAD1 – One Arm Drive System – Available with 24” mag wheels and standard aluminum handrim only. Rear seat height, camber or
axle restrictions may apply. Install on Left or Right.

XRW14 – TiLite SHADOW Rear Wheel – Select size. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)

XRW7 – Spinergy SPOX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Green

XRW8 – Spinergy LX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth. Only available with heavy
duty frame when 0° or 2° camber is selected.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Orange Pink Purple Green

ZRW9 –  Spinergy – Design Lab LX Rear Wheel Black spokes only. Select size and anodizing color. 25” and 26” wheels require 15” minimum seat
depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Gold Green Blue Red Purple Orange

XRW16 – Spinergy Carbon Blade Rear Wheel – Select size. Not available with heavy duty frame. 25” wheels require 15” minimum seat depth.

-24” (540) 25” (559)

XRW17 – X-Core Mag (Not available with Heavy Duty Frame, Short Tabs, Quad Release Axles or Spoke Guards. Available with Aluminum Sliver Anodized Handrims only.)

-22”(501) 24”(540)

Armrest:

XARM1 – Swing Away Tubular Armrests – Select range. Not available with heavy duty frame, folding stabilizer bar with short or medium
back height ranges, or depth adjustable back.
– 9”-12” or 12”-15”

XARM4 – Swing Away Flip-Back Tubular Armrests – Not available with heavy duty frame, folding stabilizer bar or depth adjustable back.
XARM2 – Removable Height Adjustable Desk Arm with Rigid Side Guard – Select range and pad size. Requires 14” minimum seat depth.

-9”-12” or 12”-15”
-Desk Length (10”) or Full Length (14”)

XARM3 – Removable Height Adjustable Desk Arm with Rigid Side Guard and Transfer Loop – Select range and pad size. Requires 16” minimum seat depth.

-9”-12” or 12”-15”
-Desk Length (10”) or Full Length (14”)

XARM5 – Armrests Covered in Black Ultrasuede – Not available with desk arms.
