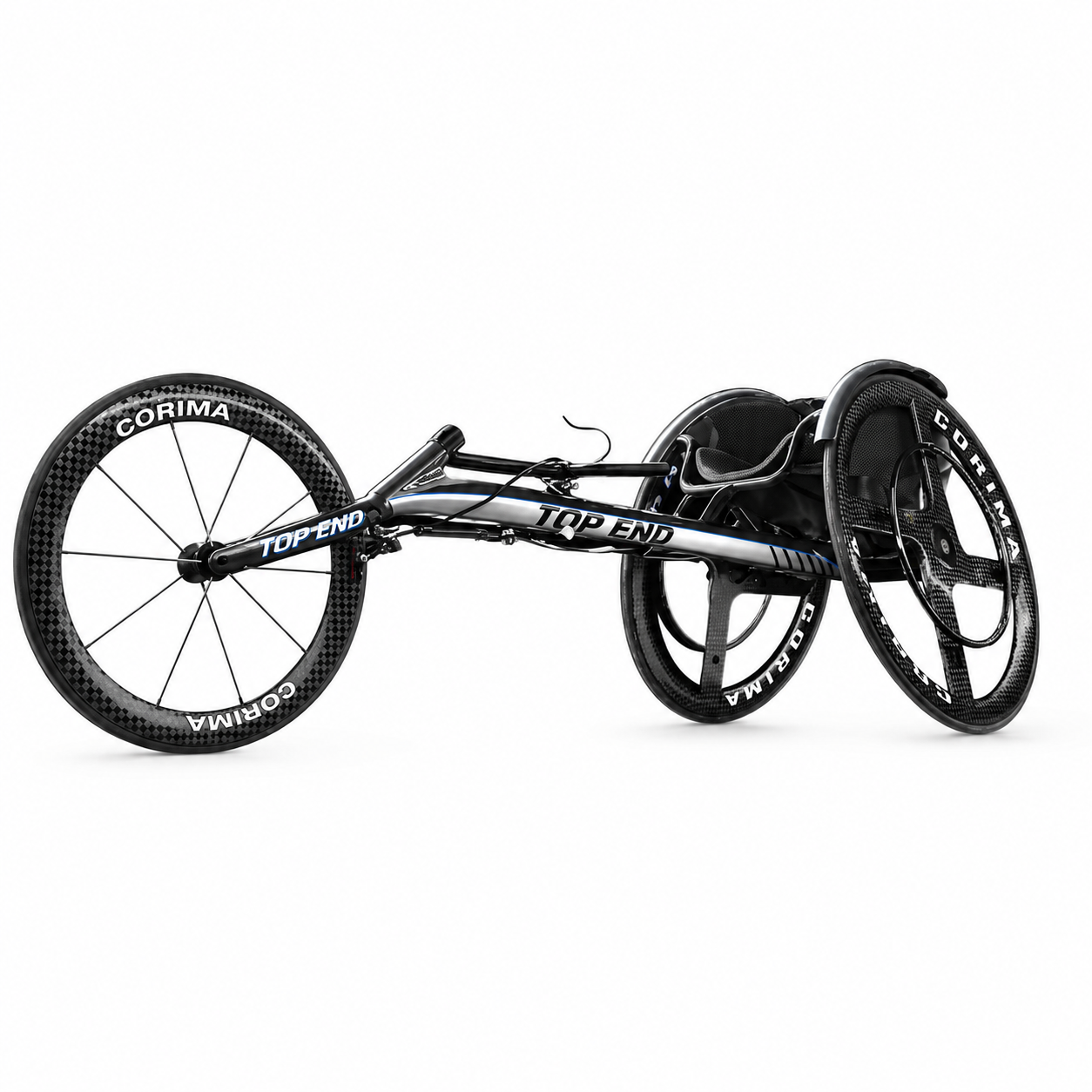

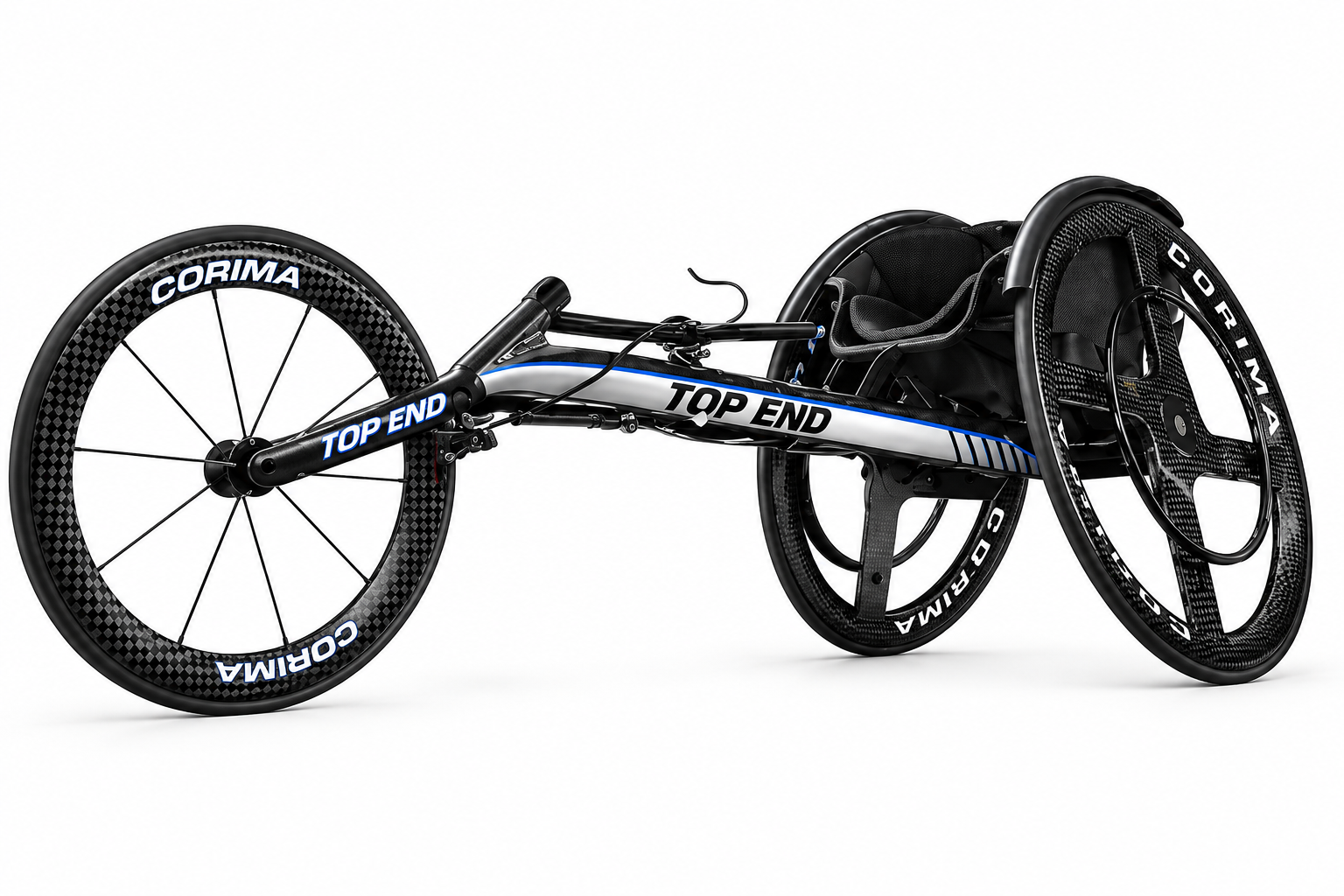

Top End Eliminator NRG Racing Wheelchair

Note: Chair ordered without front wheel, rear wheels, front tire, rear tires, pushrims or axles starts at $7,510

If Unassembled is selected the chair will require about 60 minutes of assembly upon delivery (instructions provided).

If Assembled is selected the chair will be fully assembled upon delivery.

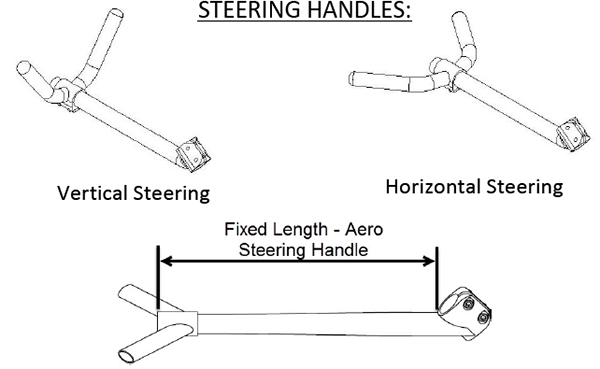

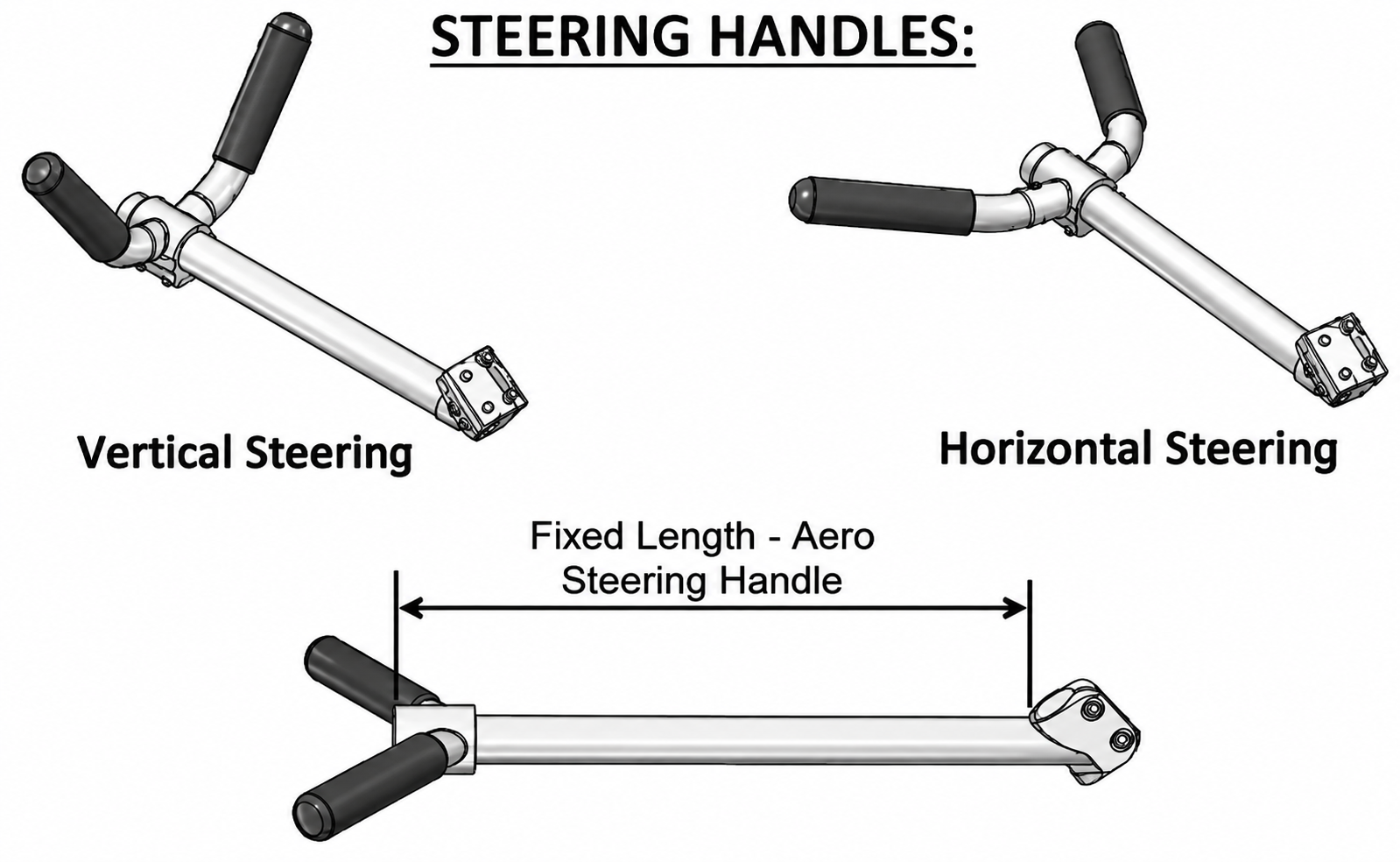

Aero Fixed Steering: Fixed steering handle is lightweight at just 202 grams (100 grams lighter than the adjustable handle), the design increases aerodynamics and stiffness. Handle is Royal Blue and 9.5″ long standard with custom length and additional colors available upon request.

Next Generation Compensator: This new and improved racing compensator has a better turning radius with zero-play confidence.

Solid Seat: The solid seat provides a solid seating surface. Not recommended if customers intend to adjust the seat upholstery. Available in carbon fiber or aluminum.

Bumper Width: Bumper width is measured from inside to inside.

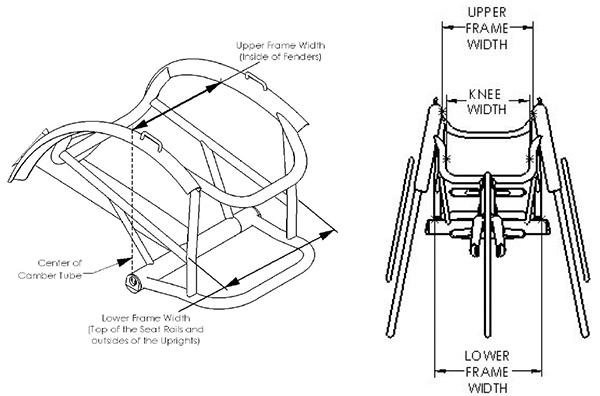

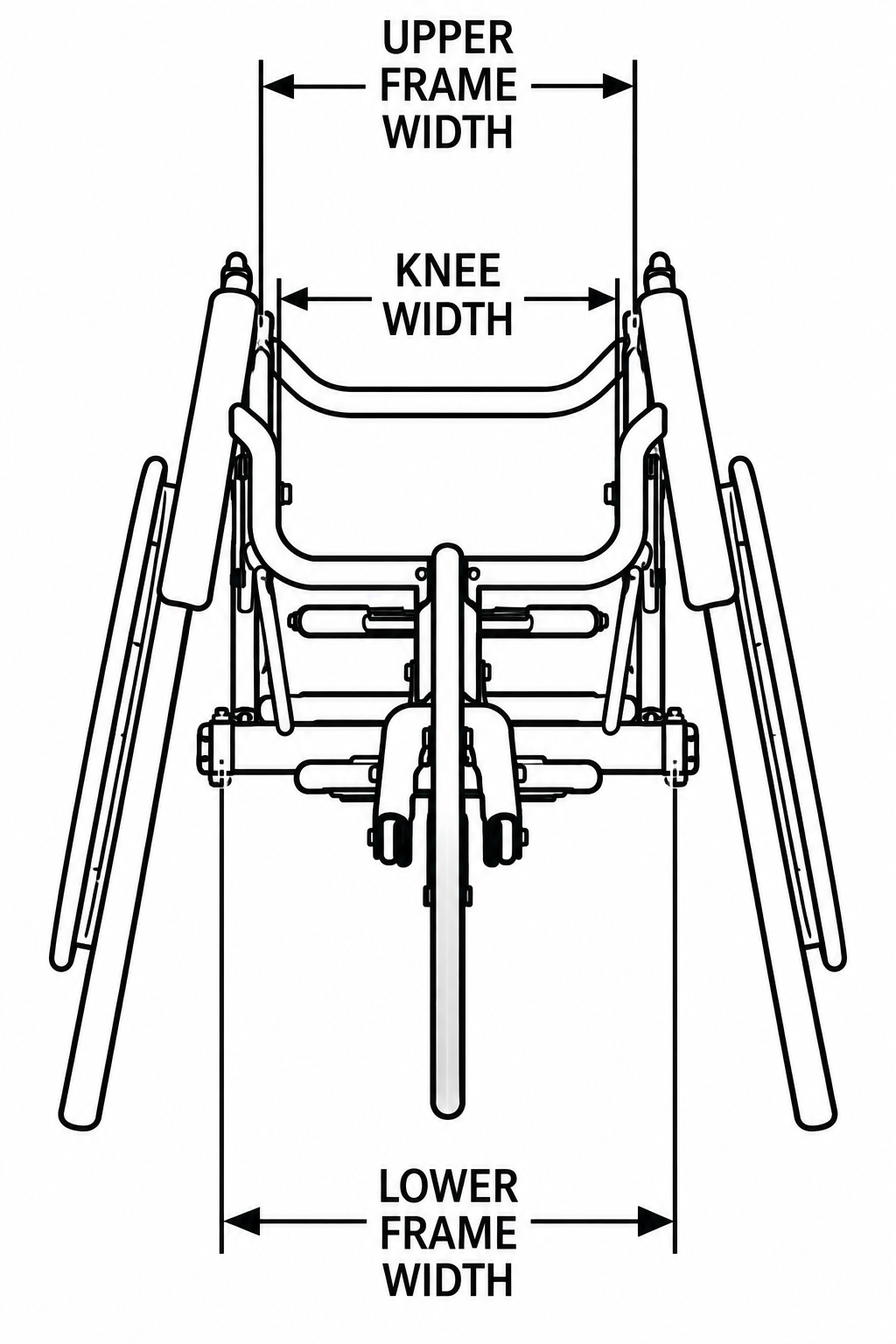

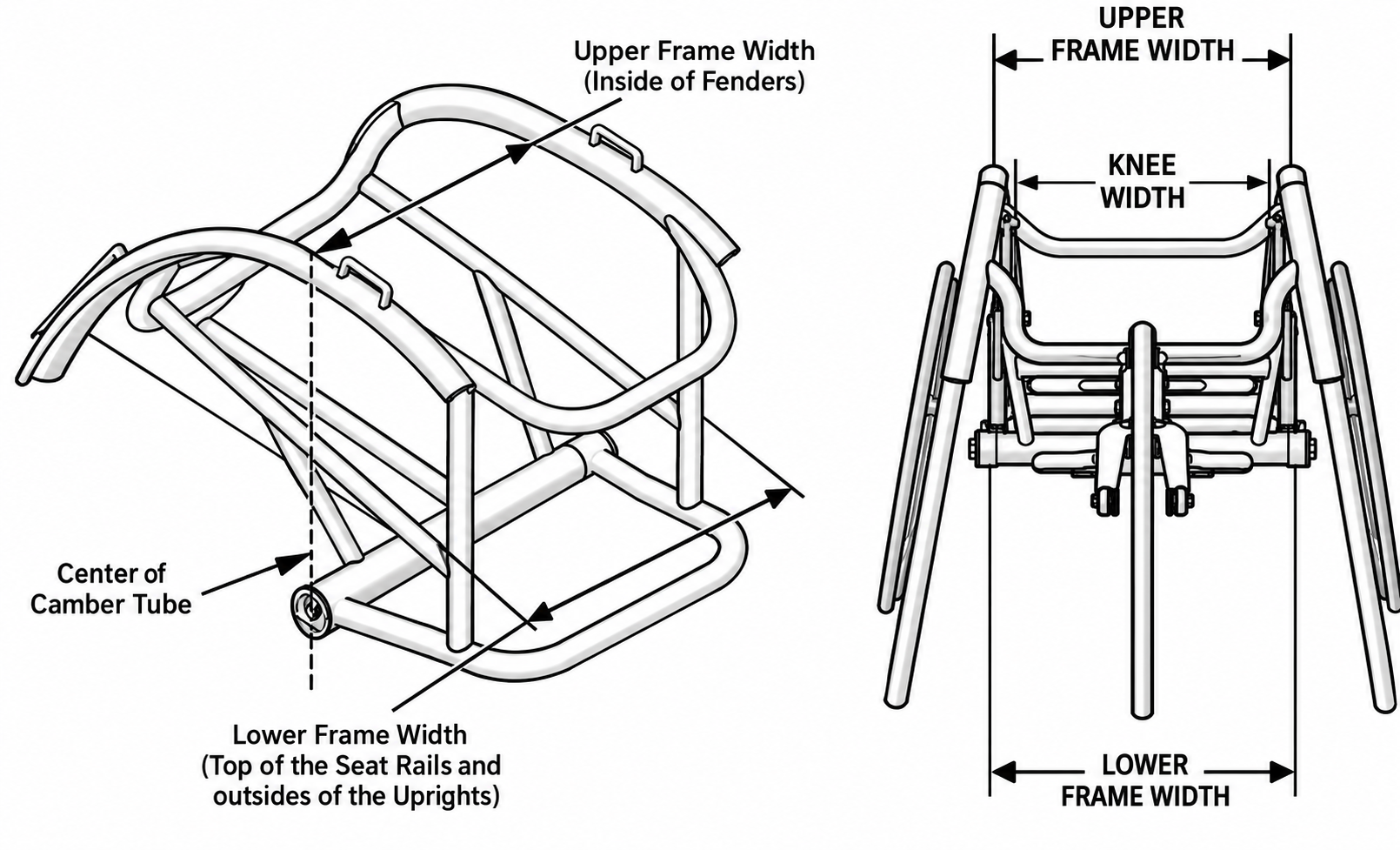

Upper Frame Width: Measured directly above the center of the camber tube between the insides of the fenders. The difference is the Upper Frame Width and Lower Frame Width. Must NOT exceed 3″.

Lower Frame Width: Measured directly above the center of the camber tube between the insides of the fenders. The difference between the Upper Frame Width and Lower Frame Width must NOT exceed 3″.

Knee Height: Knee Height is measured from the top of the U-cage horizontal cross-member to the ground.

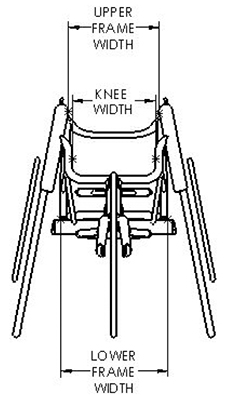

Knee Width: Knee width is measured between the inside of the U-cage vertical tubing.

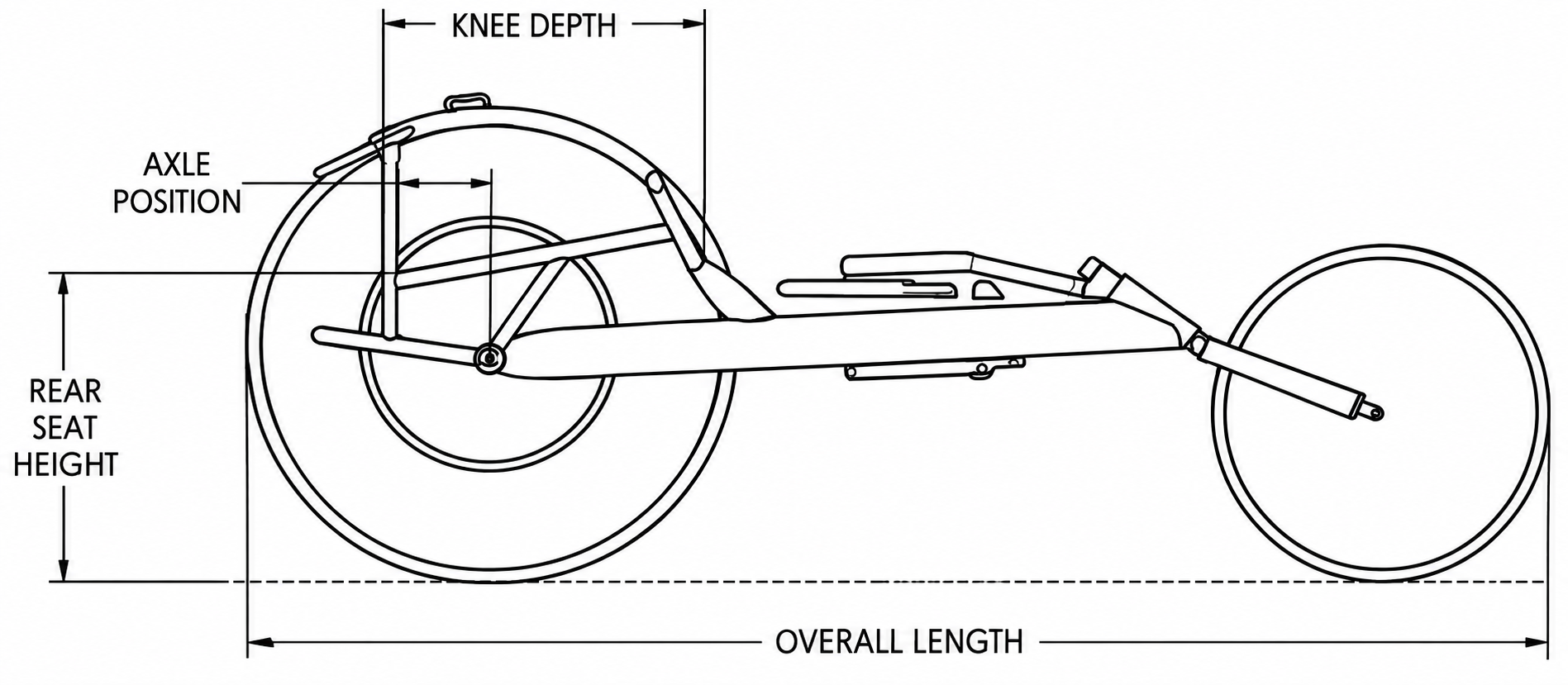

Knee Depth: Knee Depth is measured from the back of the rear upright to the front of the U-cage cross-member. The measurement must be taken parallel to the ground.

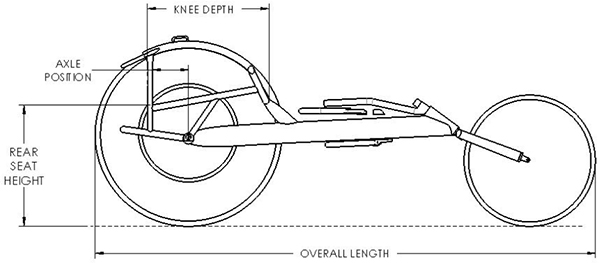

Rear Seat Height: The rear seat height is measured from the top of the seat rail to the ground at the front of the rear upright.

Overall Length: Overall length is measured from the outside of the front tire to the outside of the rear tires at the furthest points.

Axle Position: Axle Position (or Center of Gravity) is measured from the center of the camber tube to the front of the rear upright. The measurement must be taken parallel to the ground.

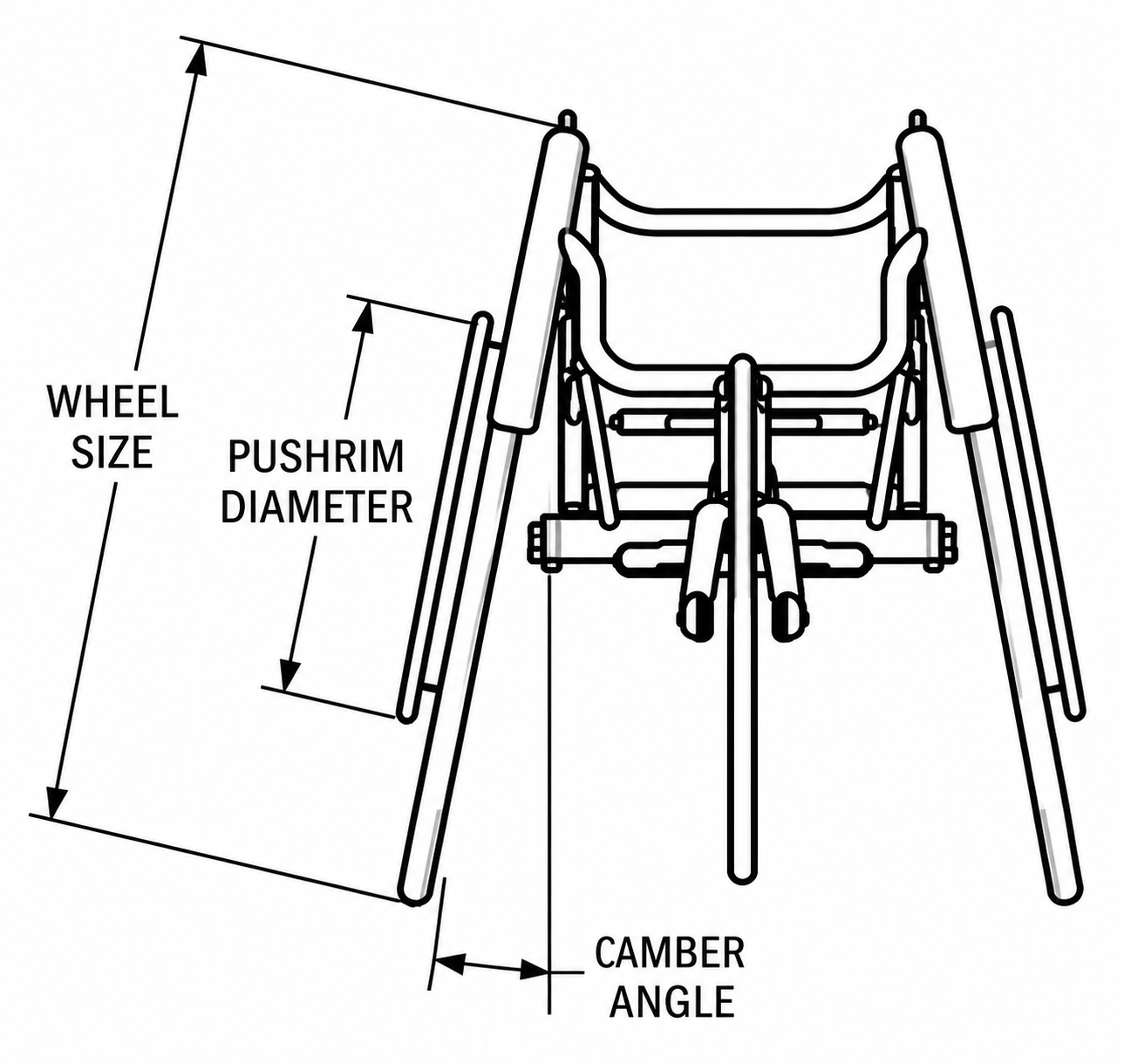

Camber Angle: Measured from vertical to the angle of the rear tire on one side. Also stamped on the bushing.

Omit Wheels: When Omit Wheels is selected, product will not come with wheels, tires, tubes, pushrims or axles.

Wheel Size: The Eliminator NRG Racing Wheelchair is only available with 700c rear wheels. Tires much be the same Clincher/Tubular type as wheels selected.

Omit Wheels: When Omit Wheels is selected, product will not come with wheels, tires, tubes, pushrims or axles.

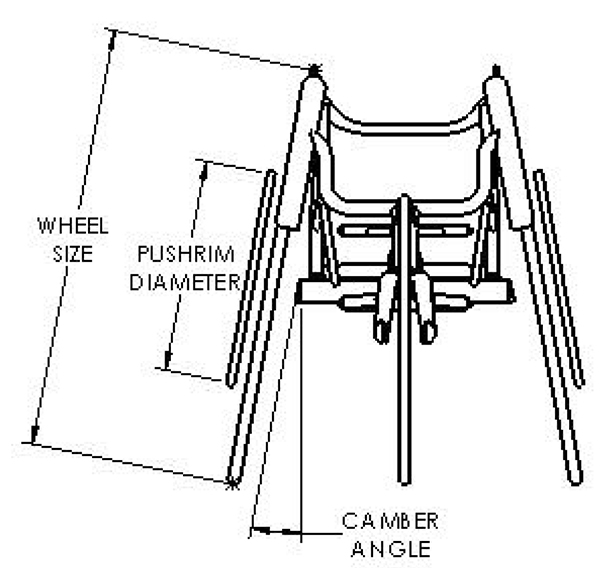

Pushrim Size: Measurement from outside to outside of the metal tubing of the pushrim.

Purple Death is only available on Court Chairs
