TiLite ZRA Rigid Titanium Wheelchair

Frame Style:

Z2FS2 – ZRA Titanium Frame Full adjustability. 265lb weight limit. 150lb weight limit for seat sizes 10”x10” to 12”x12”. For rear seat
width and seat depth B ≥ 15” use K0005. For rear seat width and seat depth < 15” use E1235

Frame Upgrades:

ZHDR1 – Heavy Duty Frame  – 300lb weight limit. No charge when 20” rear seat width and 20” seat depth are selected. Includes billet aluminum front
wheels. Requires tension adjustable by straps back upholstery, Shadow, Spinergy SPOX or LX rear wheels. Only available with 0° or 2°
camber. Not available with Slipstream or Glide forks, carbon fiber camber tube, velcro adjustable upholstery, swing away tubular armrests
or swing away flip back tubular armrests.

Frame Options:

Transit Tie-Downs –  Not available with ZR. Tested to WC-19. Consists of four tie-down brackets, two pelvic belt mounting
brackets and reinforced frame. Please refer to the ZRA Transit Tie-Down Option Brochure for important information regarding
transit tie-down options

Transport Brackets – Consists of four tie-down brackets. Unoccupied use only. Please refer to the ZR Transport Bracket
Supplement for important information regarding transit options.

Seamless power assist experience Pushing a manual wheelchair can put stress on the upper body and lead to serious issues in the future. SmartDrive gives you freedom to do more. It moves with you and it’s so lightweight, you don’t even know it’s there. You can spin in place, be in a wheelie, or hop off curbs. Empower your active lifestyle. SmartDrive offers a range of controls to deliver a seamless power assist experience, providing opportunity for 80% fewer pushes. SmartDrive was created with manual wheelchair users in mind. The mounting location, the ergonomic handle, the weight, and the OmniWheel were all designed to give manual wheelchair user access to fewer pushes.

PushTracker E3 Upgraded processor and improved battery life, with a set-up that takes just minutes The PushTracker E3 takes everything that was good about the PushTracker E2 and makes it better! It comes with increased memory and an upgraded processor, which bring battery life improvements and make the PushTracker more reliable than ever. Navigating the SmartDrive MX2+ App is easier thanks to the responsiveness of the PushTracker E3. Experience a quick setup in under 5 minutes with no phone or Wi-Fi required. With gesture-activated controls, you can start your SmartDrive with a simple tap of your hand—no pushing or reaching necessary! Download the SmartDrive MX2+ app from Google Play

Original PushTracker™ The original PushTracker was the first of its kind, introducing Bluetooth technology and tap gestures to the world as a way of controlling the device. Tap gestures allow you to control the SmartDrive without having to push the wheel to start and SwitchControl can still be used in combination. The original PushTracker is great for those who want or need a simpler wearable choice to control their SmartDrive. Fine tune your performance and keep everything up to date using the new PushTracker App.

SmartDrive MX2+ App, now on Apple Watch! You asked, we listened; SmartDrive MX2+ is now compatible with Apple Watch! Easily control your SmartDrive with tap gestures, change settings, and track distances and battery levels right from your wrist. Enjoy full access to your Apple Watch and experience best-in-class battery performance when using it with your SmartDrive. Already have an Apple Watch? Download the SmartDrive MX2+ app FOR FREE from the Apple App Store. SmartDrive MX2+ App for Apple Watch is compatible with Apple Watches Series 5 and newer running watchOS 8 or newer.

Switch Control Now Comes Standard

Color Anodize Package includes: Aluminum Camber Tube, Camber Mount, Footrest Clamp, Caster Mount, Caster Fork, Caster Cap and ZR camber tube bracket. If no anodize color is selected, the default will be black.

Rear Seat Height (A):

Measure from outside of seat tube at back post to the outside of the opposite seat tube at back post.

Front Seat Width: (T)

Measure from inside of front frame tube to inside of opposite front frame tube.

Seat Depth: (B)

Measure from front of back post to the front edge of seat sling. Front edge of seat sling will be at the beginning of the bend at front of chair frame, unless Frog Legs® or 90° Front Angle is ordered, in which case front edge of seat sling begins approximately 1” behind the bend.

Ergonomic Seat: (U)

ZRA Ergonomic Seat Center of gravity adjustment may be affected by this option. Not with V-front or seat taper, seat back that locks
when folded, desk armrests, depth adjustable backrests, fold down rigid sideguards or fendered adjustable sideguards. Bolt-on adjustable
sling available through our Creative Mobility Division #20. Solid seat available through our Creative Mobility Division CMD #16. Minimum
seat depth 10” for 6”. Minimum seat depth 12” for 7”. Minimum seat depth 13” for 8”.

Front Seat Height: (C)

Measure from floor to top of seat tube at beginning of bend. ZRA adjusts up and down in 1/2” increments.

Rear Seat Height: (D)

Measure from floor to top of seat tube at back post. ZRA adjusts up and down in 1/2” increments.

Front Angle or Overall Frame Length

Select one. If Overall Frame Length is selected, front angle will be bent to achieve requested length.

• Frame Angle ‘L’ Measure from frame front to floor. 85° not available with 6” front wheels. 90° not available with 5” or 6” front wheels.

• Overall Frame Length ‘M’ Measure from front of backrest to front edge of footrest.

Footrest Options:

ZFTR3 Angle Adjustable Footrest Standard
ZFTR1 Titanium Footrest w/Flat ABS Cover $ 217.00
ZFTR2 Titanium Open Loop Footrest $ 277.00
ZFTR12 Angle Adjustable Flip-Back Footrest Not available with 10” or 11” rear seat width or heavy duty frame.

ZFTR4 Angle Adjustable High Mount Footrest

Seat to Footrest: (E)

Measure from front edge of seat sling to top rear of footrest. Measurement must be at least 2” shorter than Front Seat Height (C).

Seat to Footrest: (E)

High Mount Options – 7″ to 9″ ; 9″ to 11″ ; 11″ to 13″

Measure from front edge of seat sling to top rear of footrest.

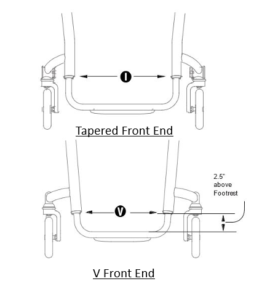

Footrest Width: (I)

Select standard front end ‘I’ if no seat taper ‘T’ has been selected. Select V-front end ‘V’ if a seat taper ‘T’ has been selected.

ZFE1 – No V-Front Taper – ‘I’ Find your rear seat width ‘A’ in the chart below and select one of the options to the right. Measure from inside of front
frame tube to inside of opposite front frame tube.

• No Taper
• 1.5″ Taper
• 3.5″ Taper

ZFE2 – V-Front Taper – ‘V’ Measure from inside of front frame tube to inside of opposite front frame tube 2.5” above footrest. Titanium footrests
have 1” of adjustment up and down. Not with ergonomic seat frames.

9”,10”, 11”, 12”, 13”, 14”, or 15”

Comfort-Tek is smooth, strong and soft with multi-directional stretch for immersion into the cushion. Designed for infection control and as an incontinence barrier, it is easily cleaned with common disinfectants and is latex-free

Diamond Spacer is a multi-dimensional mesh fabric designed for maximum airflow and heat dissipation during long-term wheelchair use. It is engineered to minimize sweating and moisture buildup, though it does not provide fluid resistance.

Comfort-Tek is smooth, strong and soft with multi-directional stretch for immersion into the cushion. Designed for infection control and as an incontinence barrier, it is easily cleaned with common disinfectants and is latex-free

Diamond Spacer is a multi-dimensional mesh fabric designed for maximum airflow and heat dissipation during long-term wheelchair use. It is engineered to minimize sweating and moisture buildup, though it does not provide fluid resistance.

Seat Back Height: (F)

Seat Back Angle: (G)

Measure angle from front of back post to floor. 90° will be perpendicular to the floor. To approximate the angle from the back post to the seat, subtract 2 degrees from measurement (G) for every 1/2” of dump.

Center of Gravity: (H)

Measure from front of back post at the seat tube to the center of the rear axle. If no center of gravity is selected, chair will ship with the center of gravity in the rearward-most position. 0° not available with swingaway push handles.

Rear Wheel Spacing: (J)

Measure from outside of seat back post to inside of rear tire. 3/4” Rear Wheel Spacing not available with 0° or 2° Camber (K).

0.75” rear spacing not available with 0° camber, and not available with 2° camber for ZRA.

Power adaptable frame only available with 0° camber.

Camber: (K)

Custom iSleeve Please provide sleeve width and depth (inches) in comment section. Add 1” to
device depth and 0.25” to width. Best when used with tension adjustable bolt-on upholstery. Some limitations may apply.

Front Forks:

ZGL1 – Out-Front Glide Suspension Fork (Available in Black anodize only. N/A w/Heavy Duty Frame) – need to select weight range

Rear Wheel Type:

(See rear seat height ranges chart for rear seat height ‘D’ limitations.)

XRW14 – TiLite SHADOW Rear Wheel – Select size. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)

XRW7 – Spinergy SPOX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Green

XRW8 – Spinergy LX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth. Only available with heavy
duty frame when 0° or 2° camber is selected.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Orange Pink Purple Green

ZRW9 –  Spinergy – Design Lab LX Rear Wheel Black spokes only. Select size and anodizing color. 25” and 26” wheels require 15” minimum seat
depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Gold Green Blue Red Purple Orange

XRW16 – Spinergy Carbon Blade Rear Wheel – Select size. Not available with heavy duty frame. 25” wheels require 15” minimum seat depth.

-24” (540) 25” (559)

XRW17 – X-Core Mag (Not available with Heavy Duty Frame, Short Tabs, Quad Release Axles or Spoke Guards. Available with Aluminum Sliver Anodized Handrims only.)

-22”(501) 24”(540)

Armrests:

Z2ARM1 Swing Away Tubular – Not available with Depth Adjustable Back/Frame or Aluminum Frame Transit Tie-Down.

Z2ARM4 Swing Away – Flip Back Tubular – Not available with Aluminum Frame Transit Tie-Down.

Z2ARM2 Removable Height Adjustable Desk Arm with Rigid Side Guard – Not available with Depth Adjustable Back/Frame unless Aluminum Frame Transit Tie-Down is selected. Requires 14” minimum Seat Depth (B).

Z2ARM3 Removable Height Adjustable Desk Arm with Rigid Side Guard and Transfer Loop – Not available with Depth Adjustable Back/Frame unless Aluminum Frame Transit Tie-Down is selected. Requires 14” minimum Seat Depth (B).
