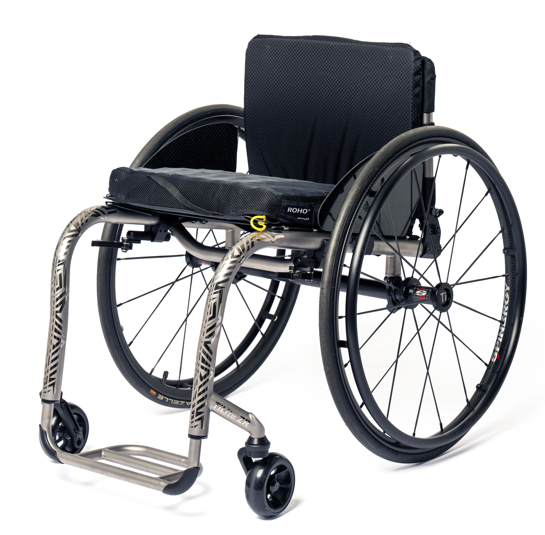

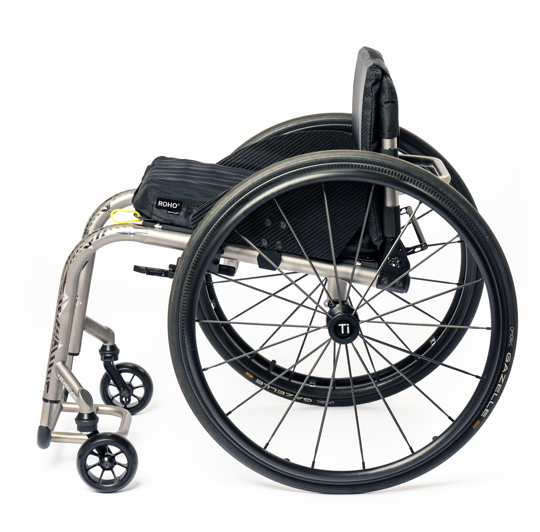

TiLite ZR Rigid Titanium Wheelchair

Frame Style:

Z2FS1 ZR – Titanium Frame Ultimate TiFIT –  Minimal adjustability. 265lb weight limit. 150lb weight limit for seat sizes 10”x10” to 12”x12”.
For rear seat width and seat depth B ≥ 15” use K0005. For rear seat width and seat depth < 15” use E1235.

Frame Upgrades:

ZHDR1 – Heavy Duty Frame – 300lb weight limit. No charge when 20” rear seat width and 20” seat depth are selected. Includes billet aluminum front
wheels. Requires tension adjustable by straps back upholstery, Shadow, Spinergy SPOX or LX rear wheels. Only available with 0° or 2°
camber. Not available with Slipstream or Glide forks, carbon fiber camber tube, velcro adjustable upholstery, swing away tubular armrests
or swing away flip back tubular armrests.

Transit Options:

ZTTDO3 – Transit Tie-Downs – Not availabl with ZR. Tested to WC-19. Consists of four tie-down brackets, two pelvic belt mounting
brackets and reinforced frame. Please refer to the ZRA Transit Tie-Down Option Brochure for important information regarding
transit tie-down options.

ZWTB  – Transport Brackets –  Consists of four tie-down brackets. Unoccupied use only. Please refer to the ZR Transport Bracket
Supplement for important information regarding transit options.

Seamless power assist experience Pushing a manual wheelchair can put stress on the upper body and lead to serious issues in the future. SmartDrive gives you freedom to do more. It moves with you and it’s so lightweight, you don’t even know it’s there. You can spin in place, be in a wheelie, or hop off curbs. Empower your active lifestyle. SmartDrive offers a range of controls to deliver a seamless power assist experience, providing opportunity for 80% fewer pushes. SmartDrive was created with manual wheelchair users in mind. The mounting location, the ergonomic handle, the weight, and the OmniWheel were all designed to give manual wheelchair user access to fewer pushes.

PushTracker E3 Upgraded processor and improved battery life, with a set-up that takes just minutes The PushTracker E3 takes everything that was good about the PushTracker E2 and makes it better! It comes with increased memory and an upgraded processor, which bring battery life improvements and make the PushTracker more reliable than ever. Navigating the SmartDrive MX2+ App is easier thanks to the responsiveness of the PushTracker E3. Experience a quick setup in under 5 minutes with no phone or Wi-Fi required. With gesture-activated controls, you can start your SmartDrive with a simple tap of your hand—no pushing or reaching necessary! Download the SmartDrive MX2+ app from Google Play

Original PushTracker™ The original PushTracker was the first of its kind, introducing Bluetooth technology and tap gestures to the world as a way of controlling the device. Tap gestures allow you to control the SmartDrive without having to push the wheel to start and SwitchControl can still be used in combination. The original PushTracker is great for those who want or need a simpler wearable choice to control their SmartDrive. Fine tune your performance and keep everything up to date using the new PushTracker App.

SmartDrive MX2+ App, now on Apple Watch! You asked, we listened; SmartDrive MX2+ is now compatible with Apple Watch! Easily control your SmartDrive with tap gestures, change settings, and track distances and battery levels right from your wrist. Enjoy full access to your Apple Watch and experience best-in-class battery performance when using it with your SmartDrive. Already have an Apple Watch? Download the SmartDrive MX2+ app FOR FREE from the Apple App Store. SmartDrive MX2+ App for Apple Watch is compatible with Apple Watches Series 5 and newer running watchOS 8 or newer.

SwitchControl Now Comes Standard

Anodized Colors

Includes caster mount, caster fork, caster caps and ZR camber tube bracket. If no anodize color is selected, default will be black

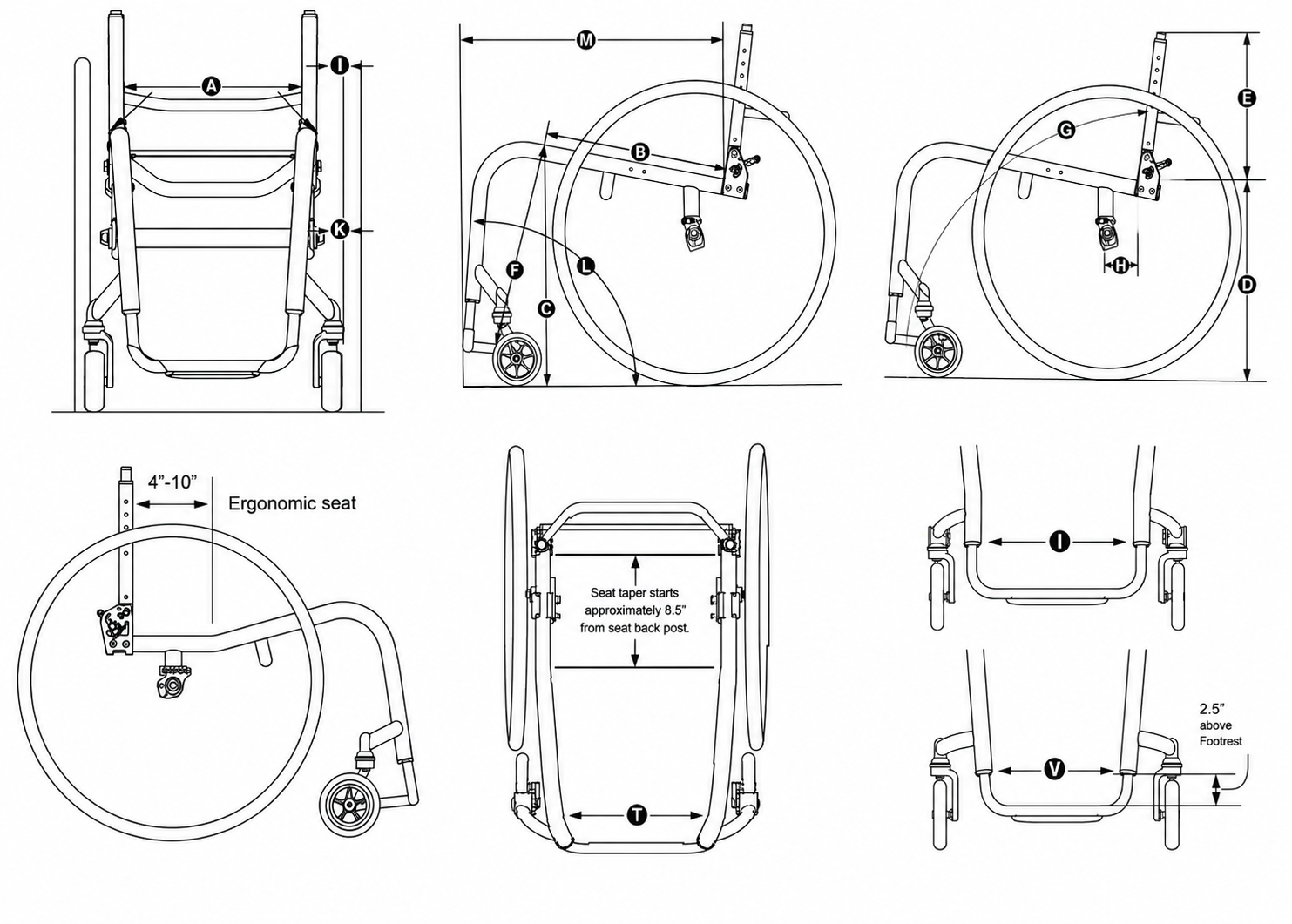

Rear Seat Width: (A)

Measure from outside of seat tube at back post to the outside of the opposite seat tube at back post.

Front Seat Width: (T)

Measure from inside of front frame tube to inside of opposite front frame tube.

ZFSW1 –  No Taper – 2.5” narrower than rear seat width. Standard
ZFSW3 – 1.5” Taper – 4” narrower than rear seat width. Includes tension adjustable by straps seat upholstery. Not with 10” and 11” seat widths. Bolton adjustable sling available through our Creative Mobility Division #20.

Seat Depth: (B)

Measure from front of back post to the front edge of seat sling. Front edge of seat sling will be at the beginning of the bend at front of chair frame, unless Glide™ or 90° Front Angle is ordered, in which case front edge of seat sling begins approximately 1” behind the bend.

Ergo Seat:

Measure from front of back post to beginning of upward bend of seat tube.

ZERG1 – ZR Ergonomic Seat – Comes standard with tension-adjustable by strap seat upholstery. Bolt-on adjustable sling available through our
Creative Mobility Division #20. Solid seat available through our Creative Mobility Division CMD #16.

5”,  6”,  7”,  8”,  9”

Front Seat Height: (C)

Measure from floor to top of seat tube at beginning of bend.

Rear Seat Height: (D)

Measure from floor to top of seat tube at back post.

Front Angle (L) or Overall Frame Length (M):

Front Angle (L): Measure from frame front to floor.

Overall Frame Length (M): Measure from front of backrest to Front Edge of Footrest.

Seat to Footrest: (E)

Measure from front edge of seat sling to top rear of footrest. Measurement must be at least 2” shorter than Front Seat Height (C).

Footrest Types:

ZFTR3 – Angle Adjustable Footrest Standard
ZFTR1 – Titanium Footrest w/Flat ABS Cover
ZFTR2 – Titanium Open Loop Footrest
ZFTR12 – Angle Adjustable Flip-Back Footrest Not available with 10” or 11” rear seat width or heavy duty frame.

ZFTR4 – Angle Adjustable High Mount Footrest

Footrest Width: (I)  Select standard front end ‘I’ if no seat taper ‘T’ has been selected. Select V-front end ‘V’ if a seat taper ‘T’ has been selected.

ZFE1 – No V-Front Taper – ‘I’ Find your rear seat width ‘A’ in the chart below and select one of the options to the right. Measure from inside of front
frame tube to inside of opposite front frame tube.

ZFE2 – V-Front Taper – ‘V’ Measure from inside of front frame tube to inside of opposite front frame tube 2.5” above footrest. Titanium footrests
have 1” of adjustment up and down. Not with ergonomic seat frames.

9”,10”, 11”, 12”, 13”, 14”, or 15”

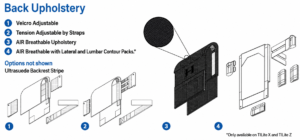

Back Upholstery

ZBUP2 – Velcro Adjustable Not available with fold-down push handles. Standard
ZBUP3 – NEW Tension Adjustable By Straps, Padded Nylon Required for fold-down push handles. E2611 $ 369.00
ZBUP5 – Tension Adjustable By Straps, AIR Breathable Required for fold-down push handles. E2611 $ 369.00
ZUPC3 – Ultrasuede Backrest Stripe, Black Not available with AIR breathable upholstery. $ 115.00
ZBUP0 – Omit Back Upholstery

Seat Back Rigidizer Bar:

ZSB11 – Backrest Locks When Folded Available on all backs. Not available with ergonomic seat

ZSB12 – 4” Deep Backrest Rigidizer Bar Not a rounded style rigidizer bar. Required for heavy duty frame. Not available with non-folding fixed
height titanium back type.

ZSB16 – Depth Adjustable Back Frame Seat depths of 10”-18” allow 2” of rearward adjustment. Height adjustable push handles have a limited
heigh range. Not with 19” or 20” seat depths, heavy duty frame, tension adjustable by straps seat upholstery or carbon fiber side guards.

ZSB3 – TiShaft Back Release Bar, Aluminum Not available with non-folding fixed height titanium backs.
ZSB5 – TiShaft Back Release Bar, 2×2 Twill Weave Carbon Fiber Not available with non-folding fixed height titanium backs.

Push Handles

Back Height Range: (F)

Back Height: (F)

Seat Back Angle: (G)

Measure angle from front of back post to floor. 90° will be perpendicular to the floor. To approximate the angle from the back post to the seat, subtract 2 degrees from measurement (G) for every 1/2” of dump.

Center of Gravity: (H)

Measure from front of back post at the seat tube to the center of the rear axle. If no center of gravity is selected, chair will ship with the center of gravity in the most rearward position. 0° not available with swingaway push handles.

Rear Wheel Spacing: (J)

Measure from outside of seat back post to inside of rear tire. 3/4” Rear Wheel Spacing not available with 0° or 2° Camber (K).

Camber: (K)

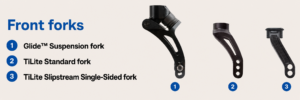

Forks

Rear Wheel Type:

(See rear seat height ranges chart for rear seat height ‘D’ limitations.)

XRW14 – TiLite SHADOW Rear Wheel – Select size. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)

XRW7 – Spinergy SPOX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Green

XRW8 – Spinergy LX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth. Only available with heavy
duty frame when 0° or 2° camber is selected.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Orange Pink Purple Green

ZRW9 –  Spinergy – Design Lab LX Rear Wheel Black spokes only. Select size and anodizing color. 25” and 26” wheels require 15” minimum seat
depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Gold Green Blue Red Purple Orange

XRW16 – Spinergy Carbon Blade Rear Wheel – Select size. Not available with heavy duty frame. 25” wheels require 15” minimum seat depth.

-24” (540) 25” (559)

XRW17 – X-Core Mag (Not available with Heavy Duty Frame, Short Tabs, Quad Release Axles or Spoke Guards. Available with Aluminum Sliver Anodized Handrims only.)

-22”(501) 24”(540)

Rear Tires:

Handrims:

Axles

Wheel Locks:

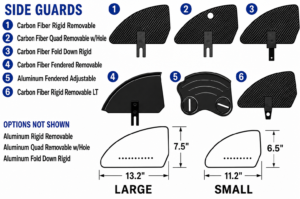

Side Guards:

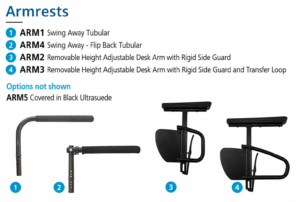

Armrests

Anti-Tips
