TiLite Twist Growable Youth Wheelchair

TWFS2 – TiLite Twist  – (Seat Width A Grows 2” & Seat Depth B Grows 3”. Full Adjustability. 165 Pound Weight Limit)

TWTTDO – Transit Tie-Downs – Tested to WC-19. Consists of four tie-down brackets. Transit option is not available with user weights less
than 51lb (23kg). Please refer to the Twist Transit Tie-Down Option Brochure for important information regarding transit tie-down
options.

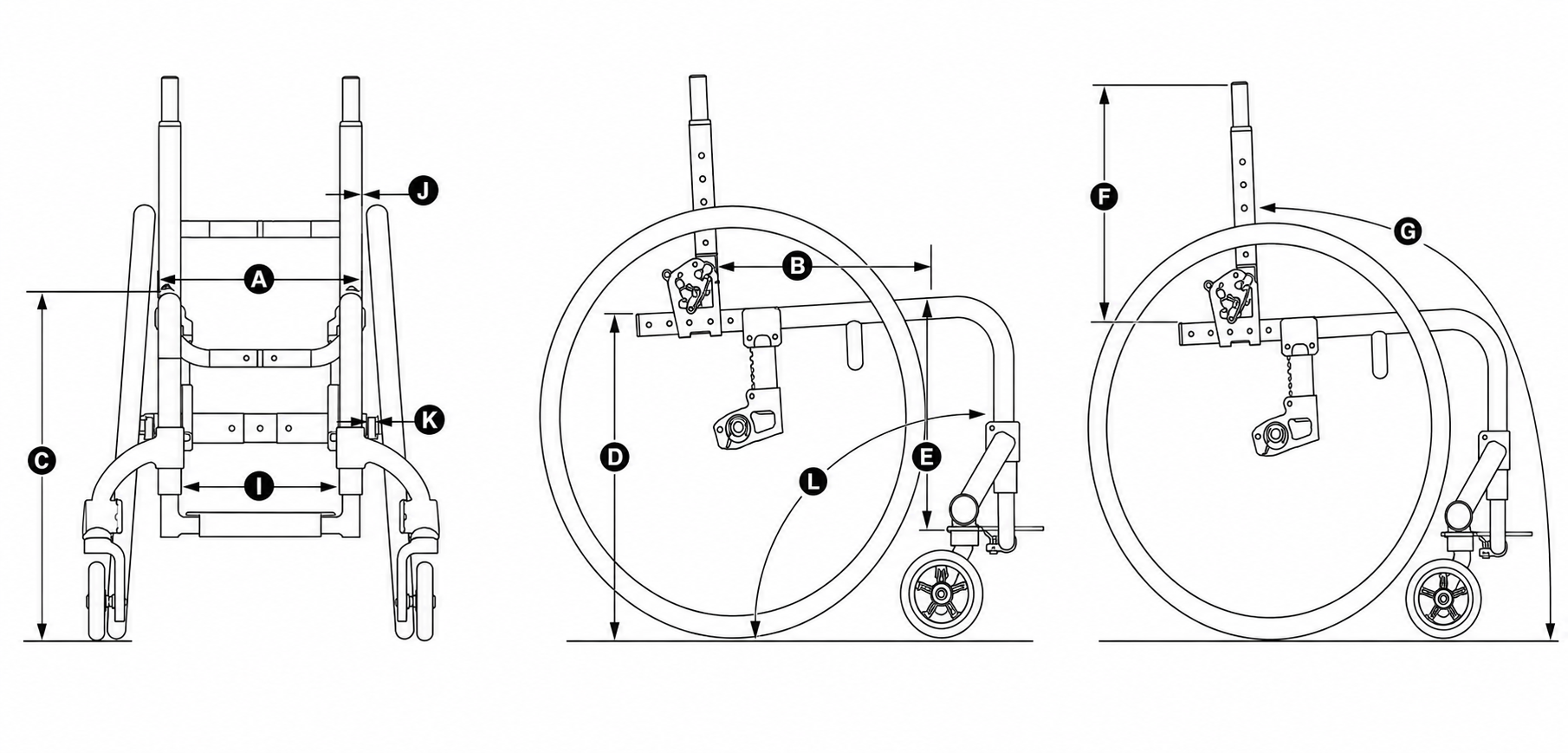

Seat Width (A):

You will need to specify specific range to set – below!

Measure from outside of seat tube at back post to the outside of the opposite seat tube at back post. Seat width grows 2”. All
upholstery and components (exception cushion) needed to grow the seat width are included. TiShaft back release bar available at no charge upon
request.

Seat Depth (B):

You will need to specify specific range to set – below!

Measure from front of back post to the front edge of seat sling. Seat depth grows 3”. Front edge of seat sling will be 1.5” from the
beginning of the bend on no-taper and tapered frames, and 2” on abduction frames. All upholstery and components needed to grow the seat depth are
included (except cushion).

Front Seat Height (C):

Measure from floor to top of seat tube at front edge of seat sling. Twist adjusts up and down in 1/2” increments. 2” taper
footrest width ‘I’ available with 12”-15” or 13”-16” seat depths only. For 2” taper footrest width ‘I’ add 1.5” to minimum front seat height.

Rear Seat Height (D):

Measure from floor to top of seat tube at back post. Twist adjusts up and down in 1/2” increments

Front Angle (L):

Measure from frame front to floor

Footrest Type:

TWFTR3 – Angle Adjustable Footrest – STD

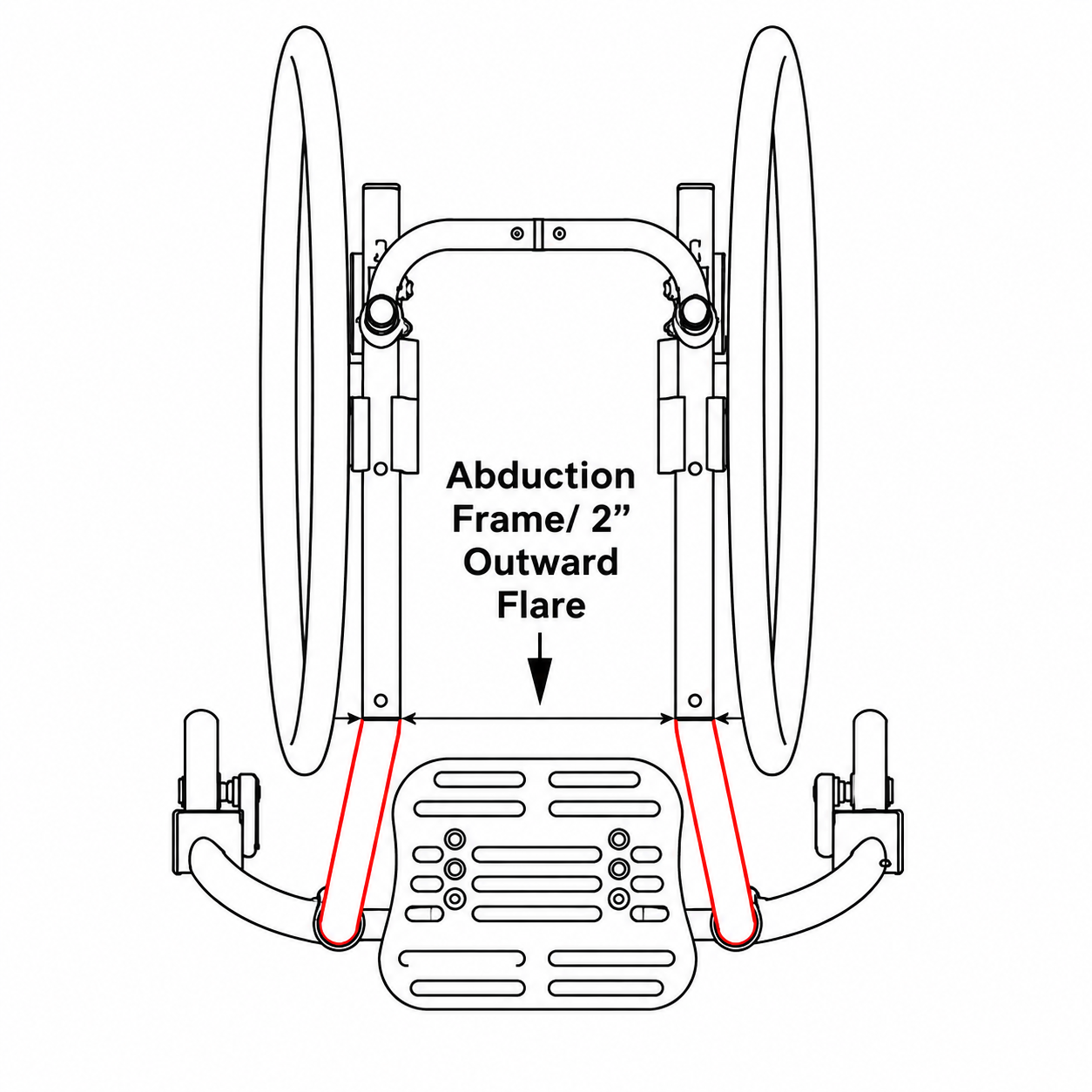

TWFTR24 – Flip-Back Depth & Angle Adj. Footrest (n/a when both 13″ – 15″ Seat Widths A & Abduction Frame/2″ Outward Flare are ordered)

TWFTR4 – Angle Adjustable High Mount Footrest

TWFTR27 – Flip-Back Depth & Angle Adj. High Mount Footrest

Seat to Footrest (E):

Measure from front edge of seat sling to top rear of footrest. Measurement must be at least 2” shorter than Front Seat Height ‘C’.

Footrest Width (I):

Measure from inside of front frame tube to inside of opposite front frame tube.

Rear Wheel Spacing (J):

Measure from outside of back post to inside of rear tire. 3/4” rear wheel spacing not available with 0° or 2° camber (K). Not all rear wheel spacing is available with all accessories.

PUSH HANDLE OPTIONS:

TWSB6 – Integrated Push Handles

TWSB7 – Integrated Fold-Down Push Handles (Requires Tension Adjustable by Straps Back Upholstery)

TWSB8 – Bolt-On Push Handles (Requires 12” – 14” or 13” – 15” Seat Width A range)

TWSB9 – Bolt-On Height-Adjustable Push Handles (Requires 12” – 14” or 13” – 15” Seat Width (A) range)

TWSB20 – Bolt-On Center Mount Height-Adjustable Push Handle – Small 9.25″; Standard 14.25″; Tall 19.25″

Seat Back Height (F):

Measure from top of back post to top of seat tube at rear of frame. Set at 0.5” increments.

(Short Seat Back Height (F) n/a w/Flip Back Tubular Armrests. Tall Seat Back Height (F) n/a w/Seat Widths (A) of 11”-13” or smaller.)

Seat Back Angle (G):

Measure angle from front of back post to floor. 90° will be perpendicular to the floor. To approximate the angle from the back post to the seat, subtract 2° from measurement G for every 0.5” of seat dump

Rear Wheel Type:

(See rear seat height ranges chart for rear seat height ‘D’ limitations.)

XOAD1 – One Arm Drive System – Available with 24” mag wheels and standard aluminum handrim only. Rear seat height, camber or
axle restrictions may apply. Install on Left or Right.

XRW14 – TiLite SHADOW Rear Wheel – Select size. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)

XRW7 – Spinergy SPOX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Green

XRW8 – Spinergy LX Rear Wheel – Select size and spoke color. 25” and 26” wheels require 15” minimum seat depth. Only available with heavy
duty frame when 0° or 2° camber is selected.

-22” (501) 24” (540) 25” (559) 26” (590)
-Black Red Blue White Orange Pink Purple Green

ZRW9 –  Spinergy – Design Lab LX Rear Wheel Black spokes only. Select size and anodizing color. 25” and 26” wheels require 15” minimum seat
depth.

-22” (501) 24” (540) 25” (559) 26” (590)
-Gold Green Blue Red Purple Orange

XRW16 – Spinergy Carbon Blade Rear Wheel – Select size. Not available with heavy duty frame. 25” wheels require 15” minimum seat depth.

-24” (540) 25” (559)

XRW17 – X-Core Mag (Not available with Heavy Duty Frame, Short Tabs, Quad Release Axles or Spoke Guards. Available with Aluminum Sliver Anodized Handrims only.)

-22”(501) 24”(540)

Clear Lexan Spoke Guards – Not available with Mag rear wheels.
