Varilite Icon Back - Deep

Next product →

		(0 reviews)

Price isn't all that matters when you are considering buying Varilite Icon Back - Deep, excellent customer service is priceless!

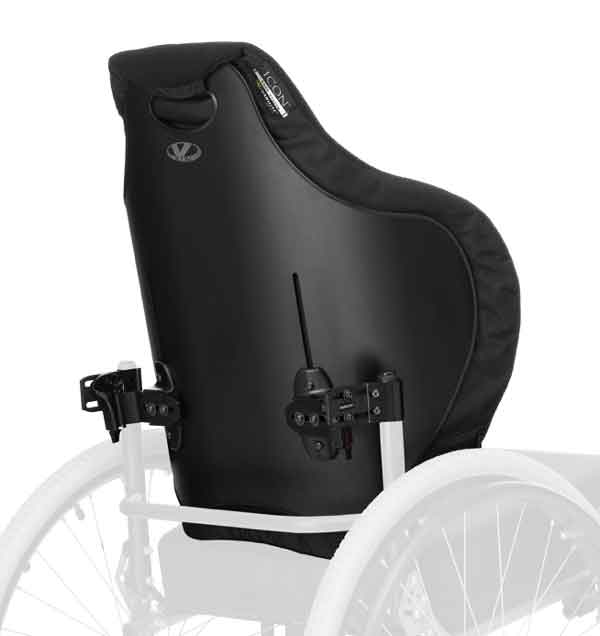

Icon™ Deep Back is a very effective lightweight wheelchair cushion for users who need a Deeper trunk support and the full adjustment capability of a larger style of back. With an unrestricted upper boday, you can get a full range motion of the upper body and trunk, and improves Activities of Daily Living. The shell curves around the sides of the body for mild lateral support, while the accompanying enhanced rollover cushion protects the user and provides maximum comfort.

Adjusting Angle, Depth, Width and Height of Icon™ Back System hardware is simple and easy. All adjustment screws are accessible from the rear of the back support or from the outside of the Cane Brackets. Adjustments can be made while the user is in the wheelchair.

Operating the system is as easy as opening the latches and sliding the back support out of the hardware. Latches stay in an open position until the back is removed, making it simple to remove the support with one hand or limited dexterity. The hardware guides the back support into position with minimal effort and locks it securely into place. Red safety markings alert the user that a latch is open and not in the locked position.

The Icon™ Back System incorporates a VARILITE® air-foam floatation cushion, and features an innovative rollover cushion to protect the user from contact with the edge of the shell during extension or weight shifting activities. Sculpted foam fits the shell contour without bunching. Multi-stiffness foam is thickest along the vertebral column. Soft foam protects the sensitive areas of the spine while firmer foam supports the sides of the trunk. A two-way air valve allows air in and out of the cushion for a custom fit and adjustable comfort.

Product details

31%

Stock#

VIB-Deep-J

Retail:

$702.00

Cost:

$487.50

Click here to be notified of price drops of this item


Choose Wheelchair Width & Back Height

Extra Cover for this Back

Modesty Kit

Cost:

$487.50

Qty

Click here to subscribe for 'Back-in-stock' notifications

Click here to be notified when this item is nearly out of stock

Send to friend
Customers also bought
Customer feedback
Detailed Description
Size Chart
Specifications

Your name:	*
Your email:	*
Recipient's email:	*
Add a personal message

Racing Hand Rim Tire coating Tires

$32.50

Wheelchair Transfer Boards - 8 x 24 - No Hand Holes

$43.50

Locking Raised Toilet Seat

$48.50

The Blue Wheelchair Gloves

$5.00

Kenda Wide Knobby Wheelchair Tires 25" x 2" (50-559)

$39.00

Varilite Fixed Lateral Thoracic Supports

$57.75

Big Rigs Caster Forks

$589.00

EquaGel General Wheelchair Cushion Cover

$60.00

Beasy "Bathroom" Transfer Board

$89.95

There have been no reviews

Add your own review

Icon™ Deep Back is an ideal lightweight solution for users needing Deeper trunk support and the full adjustment capability of a larger style of back. The upper body is unimpeded, which allows full range motion of the upper body and trunk, and improves Activities of Daily Living. The shell curves around the sides of the body for mild lateral support, while the accompanying enhanced rollover cushion protects the user and provides maximum comfort.

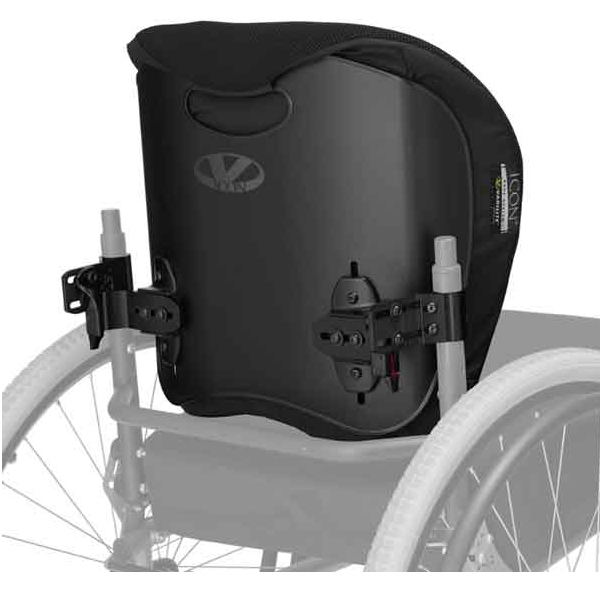

Built with the user, caregiver, clinician and technician in mind, the Icon™ Mid Back System provides the best solution for those who demand fast installation, adjustment versatility, and simple operation. The Icon™ Mid Back attaches to the wheelchair using innovative adjustable hardware, and includes a VARILITE® air-foam floatation cushion for superior comfort.

Operating the system is as easy as opening the latches and sliding the back support out of the hardware. Latches stay in an open position until the back is removed, making it simple to remove the support with one hand or limited dexterity. The hardware guides the back support into position with minimal effort and locks it securely into place. Red safety markings alert the user that a latch is open and not in the locked position.

Icon™ Hardware and Shell
The Icon™ Back System installs on a wheelchair quickly and easily. Only two parts need to be attached to the wheelchair – all other hardware components are pre-installed. All adjustment screws are the same. Only a single tool is needed. Icon™ hardware is symmetrical and provides a wide range of seat depth adjustment, without any need for special, extra length parts. Posterior seat depth can be increased or anterior depth decreased by reversing the hardware.

Adjusting Angle, Depth, Width and Height of Icon™ Back System hardware is simple and easy. All adjustment screws are accessible from the rear of the back support or from the outside of the Cane Brackets. Adjustments can be made while the user is in the wheelchair.

Once adjusted, Icon hardware stays in place. Cane Brackets clamp securely and will not slip. The innovative Adjuster Plate mechanism for recline adjustment is positive locking to prevent the back support from moving during Activities of Daily Living or other times when heavy loads are placed on it.

Operating the system is as easy as opening the latches and sliding the back support out of the hardware. Latches stay in an open position until the back is removed, making it simple to remove the support with one hand or limited dexterity. The hardware guides the back support into position with minimal effort and locks it securely into place. Red safety markings alert the user that a latch is open and not in the locked position.

Rollover Cushion
The Icon™ Back System features an innovative rollover cushion to protect the user from contact with the edge of the shell during extension or weight shifting activities. The cushion is secured inside the cover so it stays in place. The wheelchair user can perform Activities of Daily Living with confidence and in comfort. Icon™ Mid Back includes an enhanced rollover cushion. Special padding in the cover provides extra protection. The Icon™ Back System incorporates a VARILITE® air-foam floatation cushion. Sculpted foam fits the shell contour without bunching. Multi-stiffness foam is thickest along the vertebral column. Soft foam protects the sensitive areas of the spine while firmer foam supports the sides of the trunk. A two-way air valve allows air in and out of the cushion for a custom fit and adjustable comfort.

Breathable Fabric
Spacer knit fabric on the outside of the cover increases air-flow between the user and the back support. Reticulated foam sewn under the spacer knit fabric provides additional air exchange plus pressure distribution The Icon™ Back System cover meets ISO 7176-16 ignition resistance standard for upholstered wheelchair components. The cover is machine washable.

Thoracic Supports and Accessories
VARILITE® PAL™ Swing-Away Thoracic supports are designed to complement the Icon™ Mid Back. PAL™ (Positive Action Lateral) supports allow hinge angle, pad rotation, and horizontal pad adjustments for a precise fit. All PAL™ swing-away lateral supports include a neoprene protective cover that attaches easily to the PAL™ push button hinge. Fixed lateral supports are available for situations when a swing-away lateral is not required. Fixed lateral supports consist of shell bracket, pad bracket and pad.

Users who need extra support for correct positioning can utilize the PSIS Block or Supplemental Lateral Supports attached to the shell of their Icon™ Back System. These supports can be positioned within the shell using hook and loop attachment. The PSIS Block and Supplemental Lateral Supports can be added as an accessory to any Icon™ Back System. The PSIS (posterior superior iliac spine) Block provides support to the sacrum at the PSIS level, promoting anterior pelvic tilt and spinal extension. The Supplemental Lateral Pads help users who lean to one side maintain an upright position.

Users needing extra coverage between the back support and wheelchair seat can purchase a modesty kit that attaches to the shell of the back system and the seat of the wheelchair. Modesty kits provide extra coverage for the user, while appearing integrated into the back support.

Points of Measurement
A. back height (shell only, rollover cushion can add 1.5 in to overall height)
B. bottom of back to beginning of vertical slot
C. bottom of back to top of vertical slot
D. range of Icon™ hardware adjustment in vertical slot
E. outside width of shell
F. inside width of support surface
G. height of fixed lateral support

Size Chart and Fit Information

When choosing an Icon™ Back System, consider the widths of the wheelchair, the back shell and the support surface, plus the type of laterals.

Icon™ Deep Back
Size	Fits Wheelchair Widths
14	13"- 15"
15	14"- 16"
16	15"- 17"
17	16"- 18"
18	17"- 19"
20	19" - 21"

Icon™ Deep Back
Size	A	B	C	D	E	F	G
	Back Height (shell only; cushion can add 1.5 in.)	Bottom of back to bottom of slot	Bottom of back to top of slot	Range of hardware adjustment	Outside width of shell	Inside width of support surface	Height of fixed lateral support
14	17.0"	2.5"	9.5"	3.5"	12.6"	11.8"	11.6"
15	18.2"	2.5"	10.5"	4.5"	14.3"	13.5"	12.6"
16	19.4"	3.0"	11.0"	4.5"	15.3"	14.5"	13.6"
17	20.5"	3.0"	11.0"	4.5"	16.3"	15.5"	14.3"
18	21.75"	3.5"	11.5"	4.5"	17.4"	16.6"	15.0"
20	23.6"	3.5"	11.5"	4.5"	19.6"	18.8"	16.2"

Cushion Composition	Air-Foam Floatation
Shell Composition	Aluminum
Hardware Composition	Metal
Hardware Type	Adjustable
Weight	6.4 lbs. (18 in.) (includes all hardware)
Max User Weight	300 lbs.
Cover Type	Mesh
Valve Type	Standard
Maintenance	Once a week, allow your VARILITE cushion to fully inflate overnight with all valves open.
Warranty	2 Years, excluding cushion cover
